Carbon body parts AUDI R8 LMS Ultra

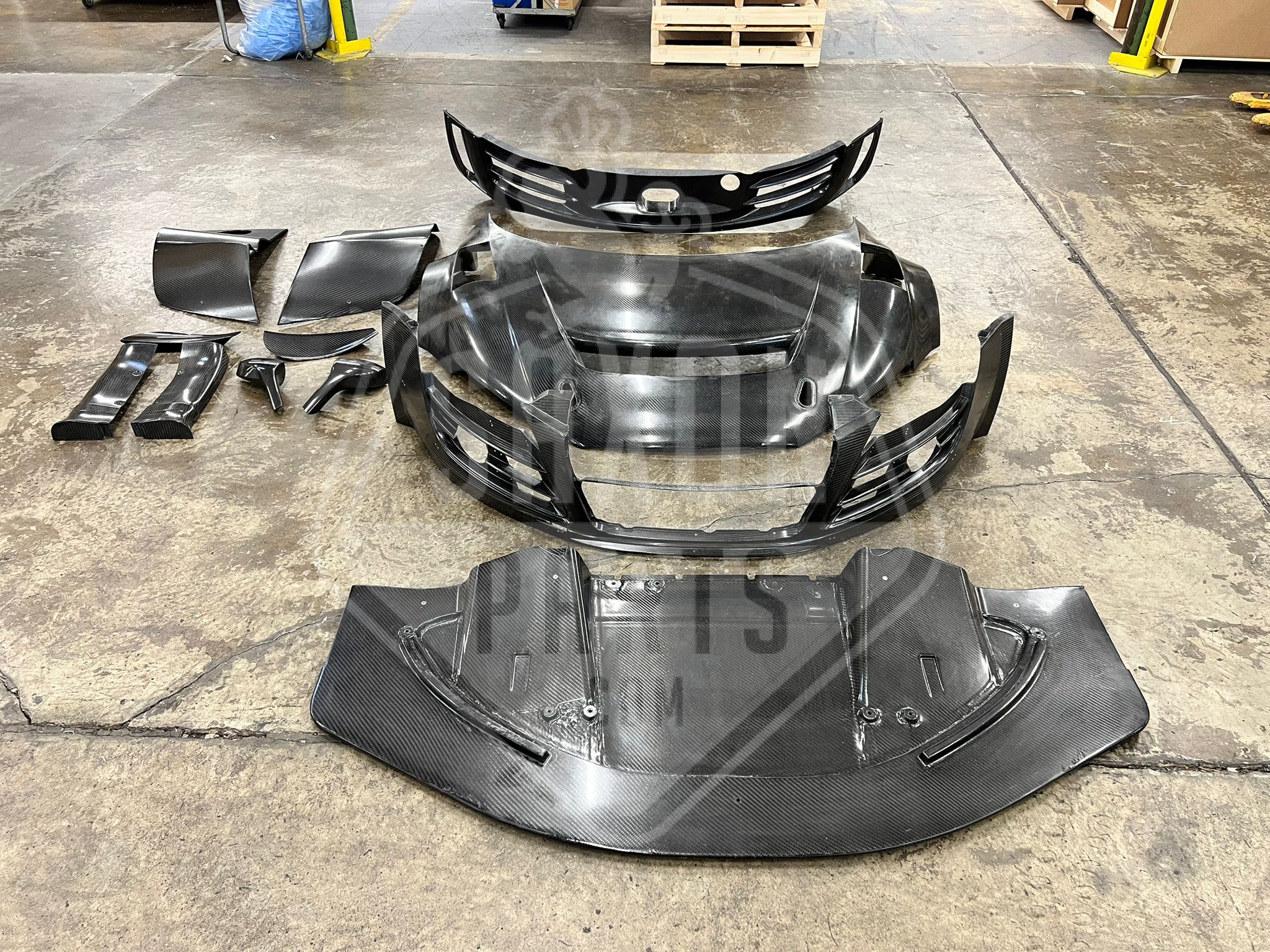

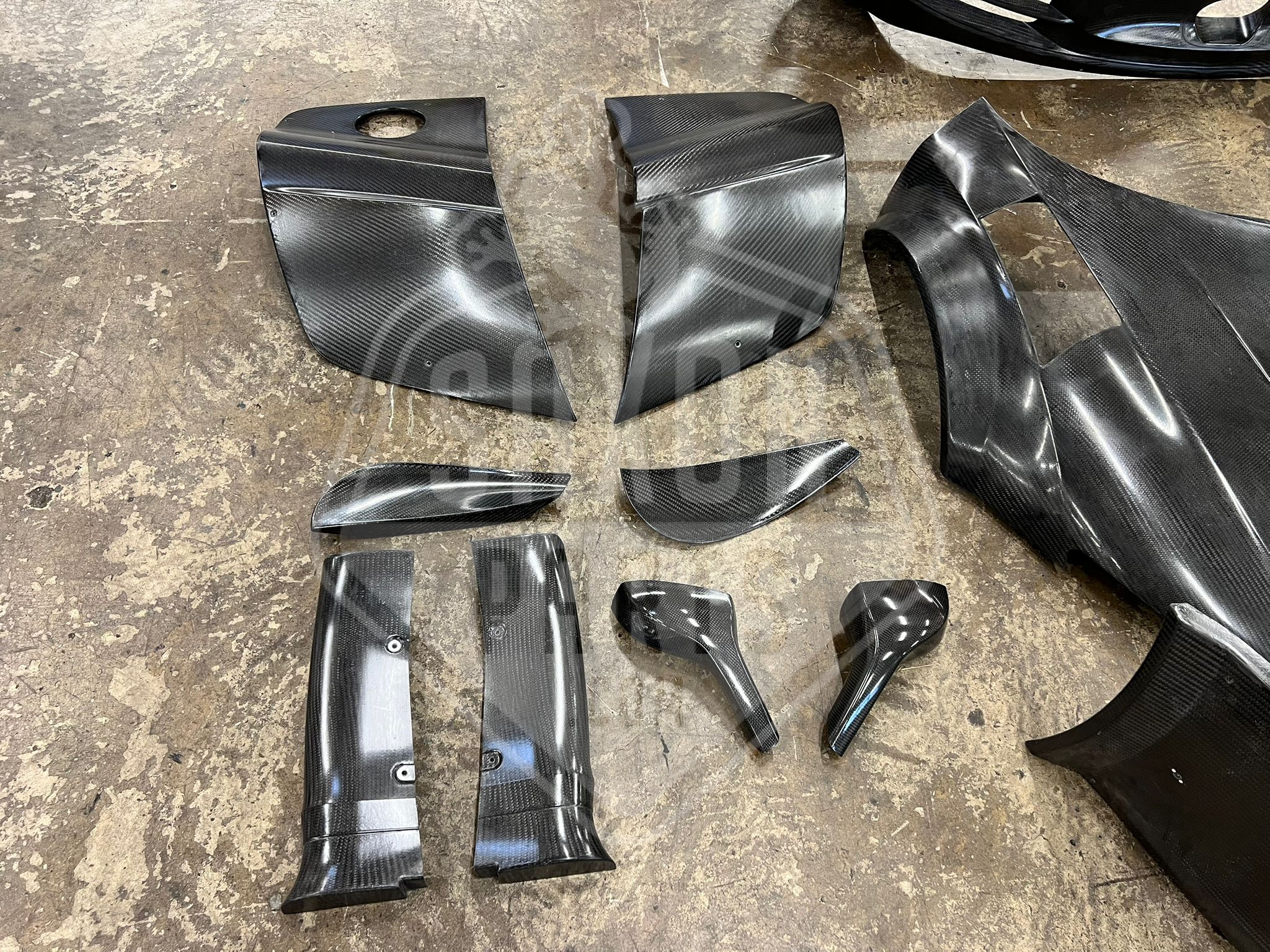

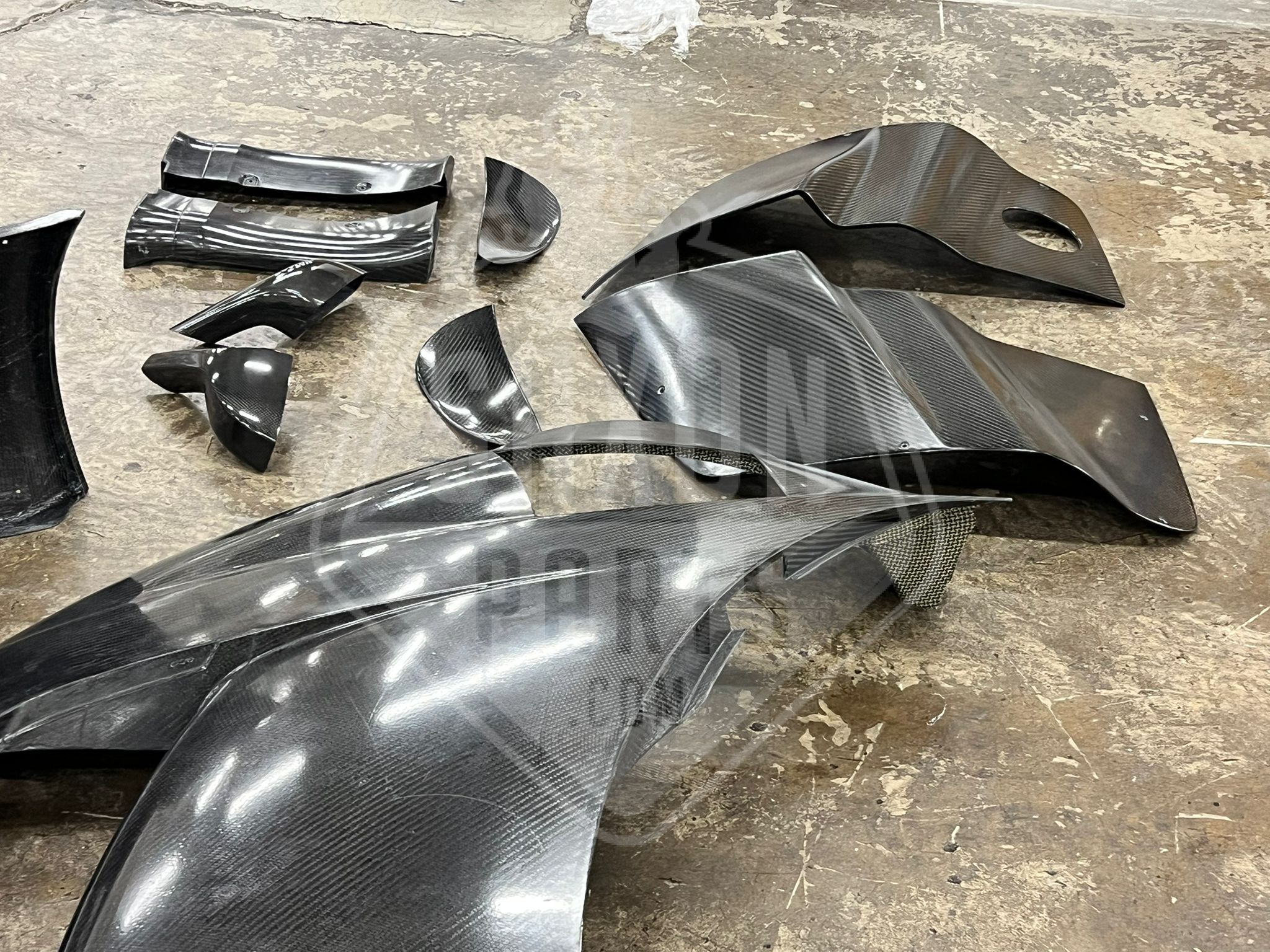

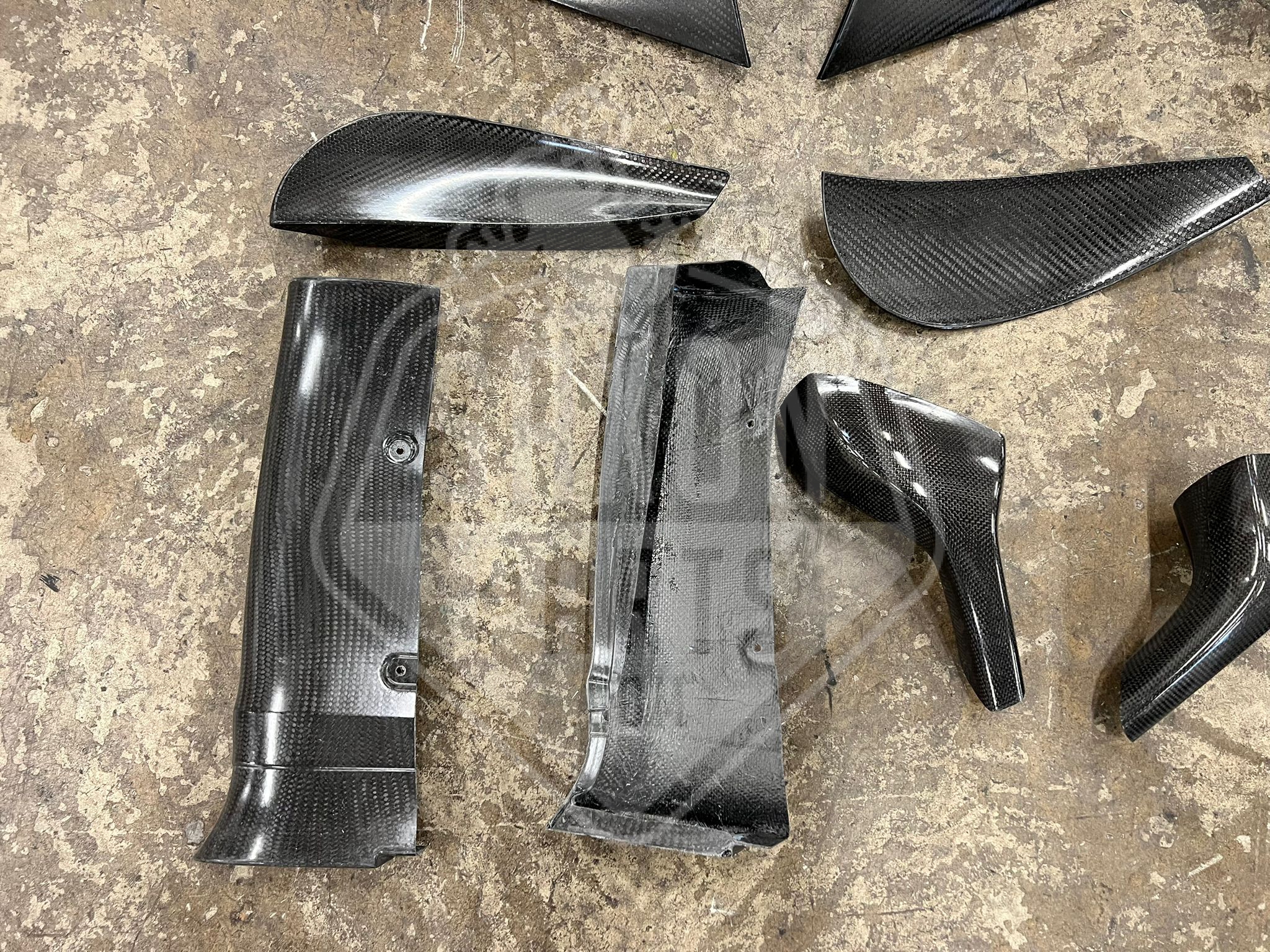

A wide range of motorsport carbon parts for the AUDI R8 LMS Ultra
High quality and used by teams in Europe.
Available:

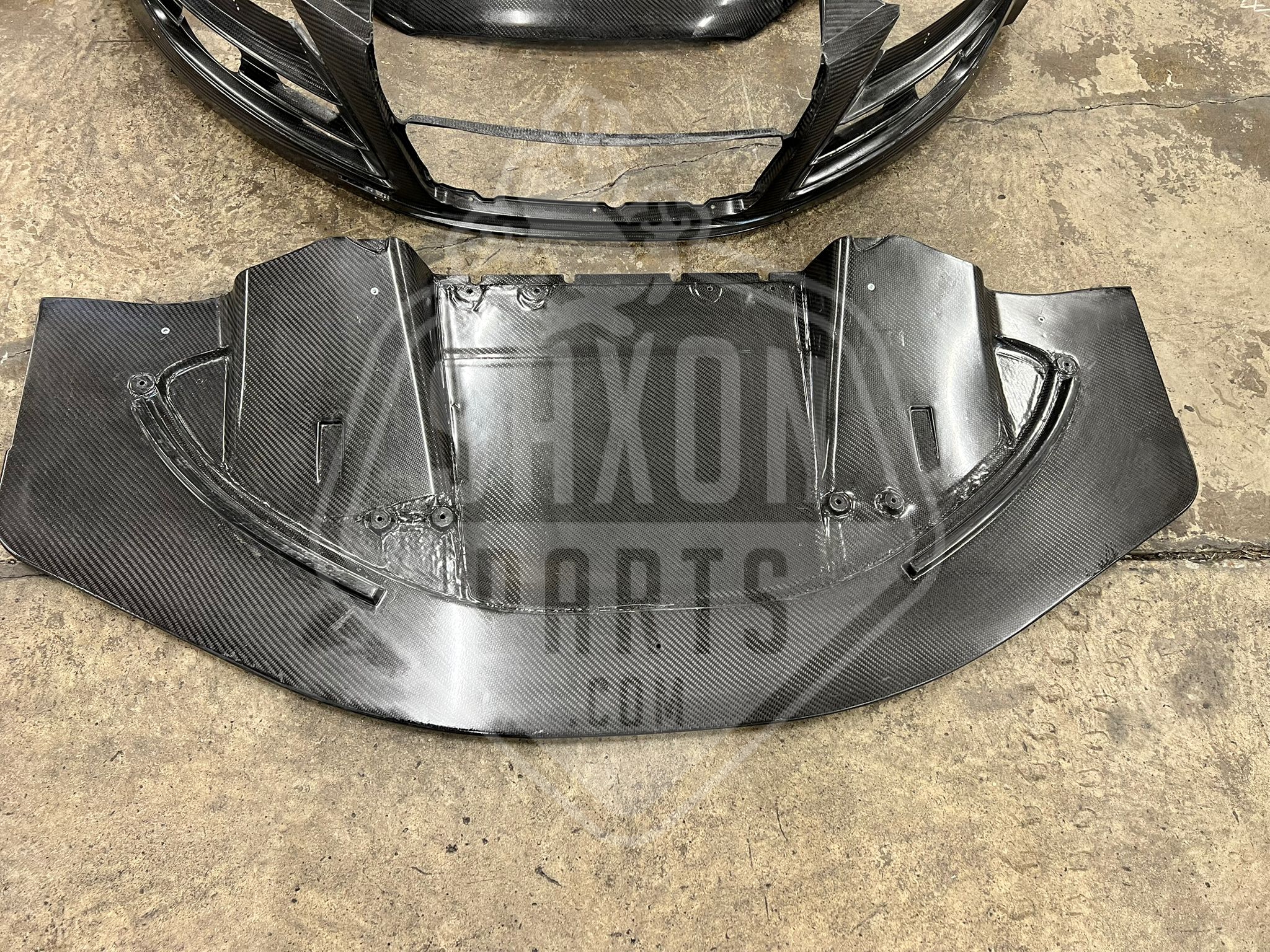

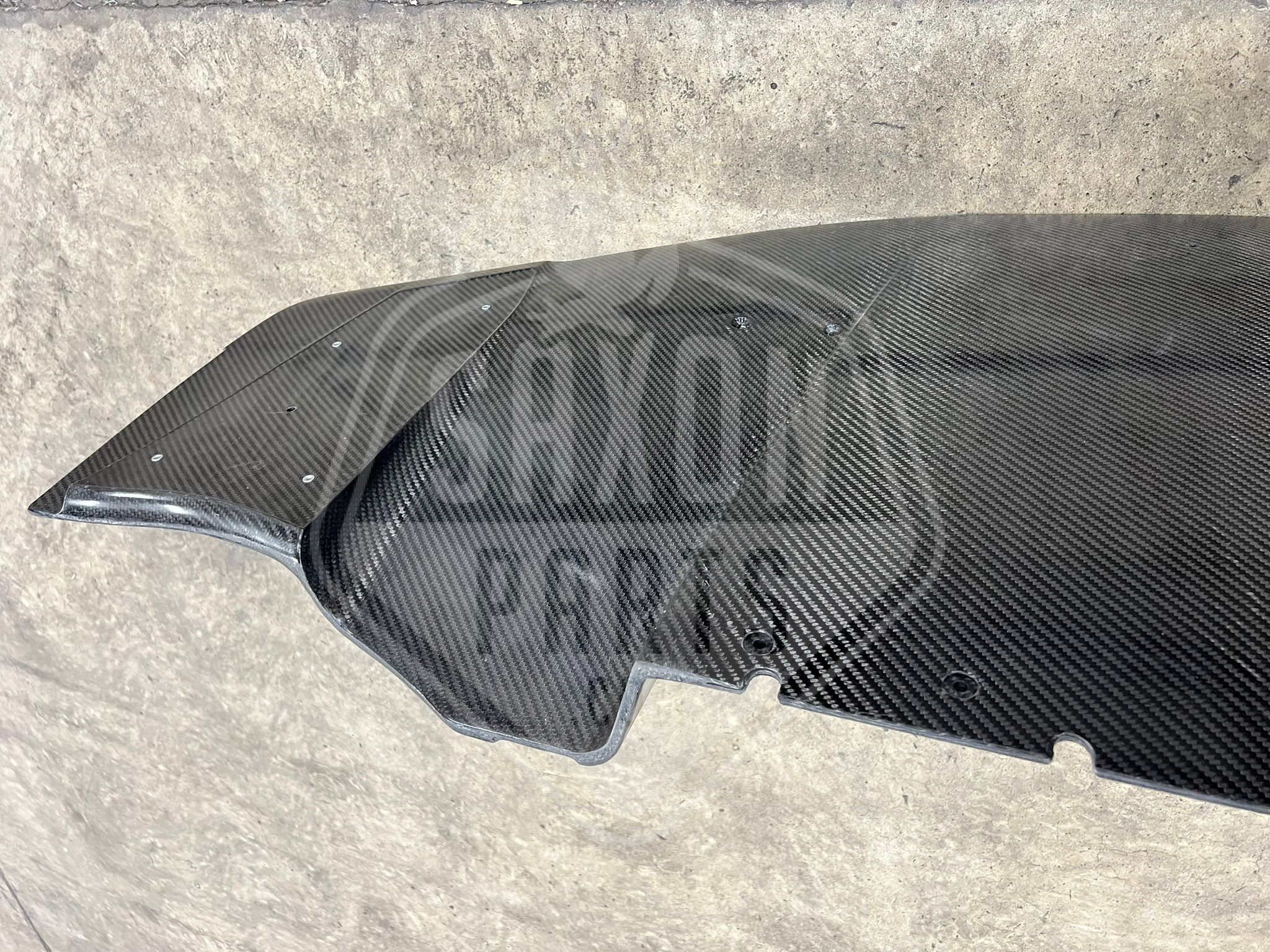

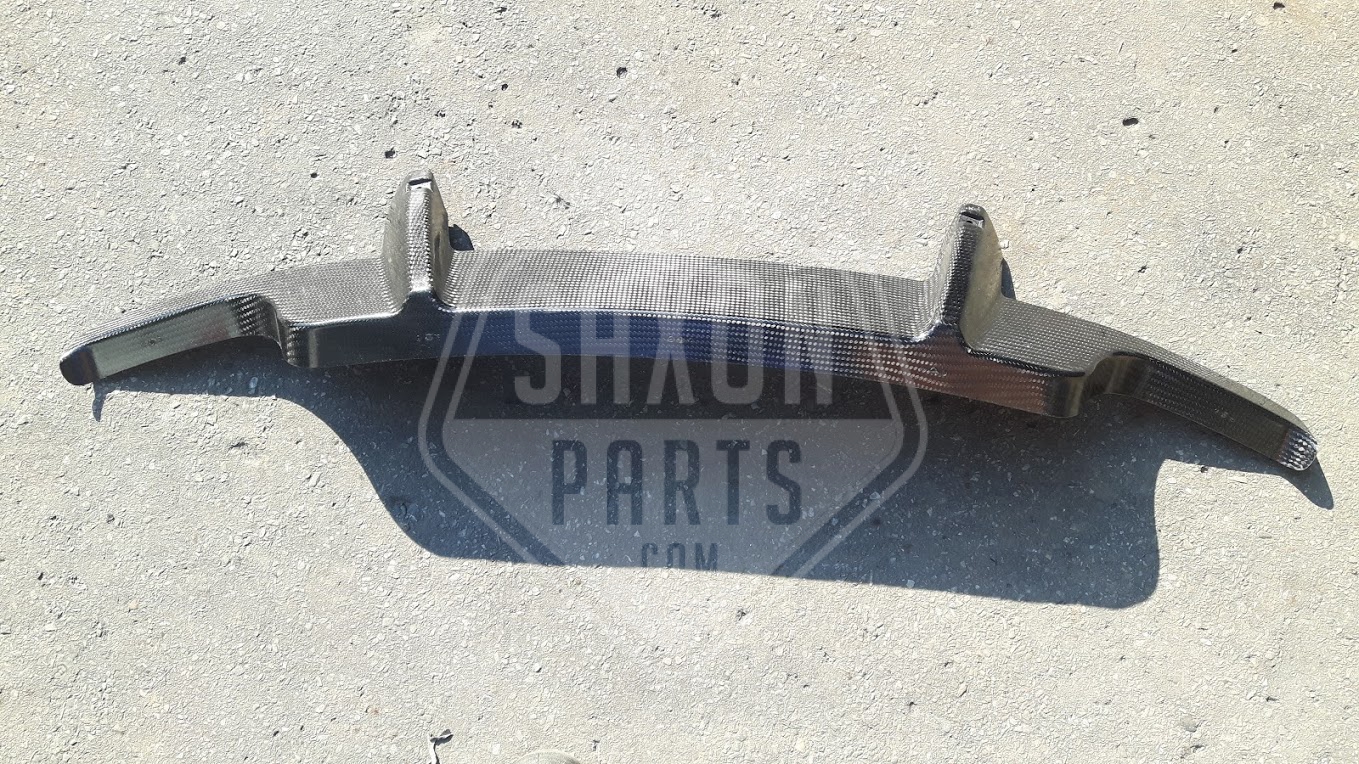

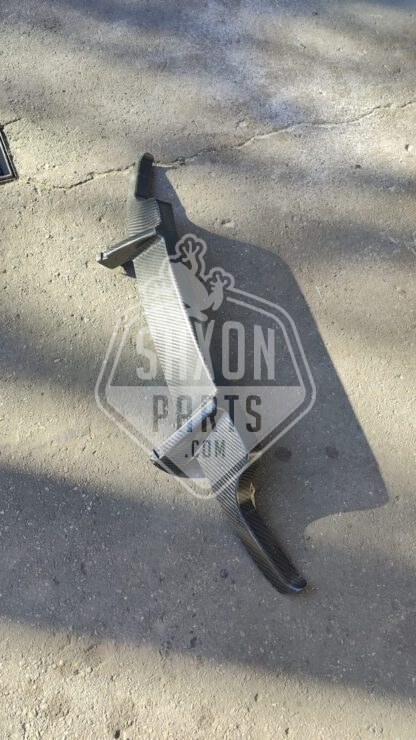

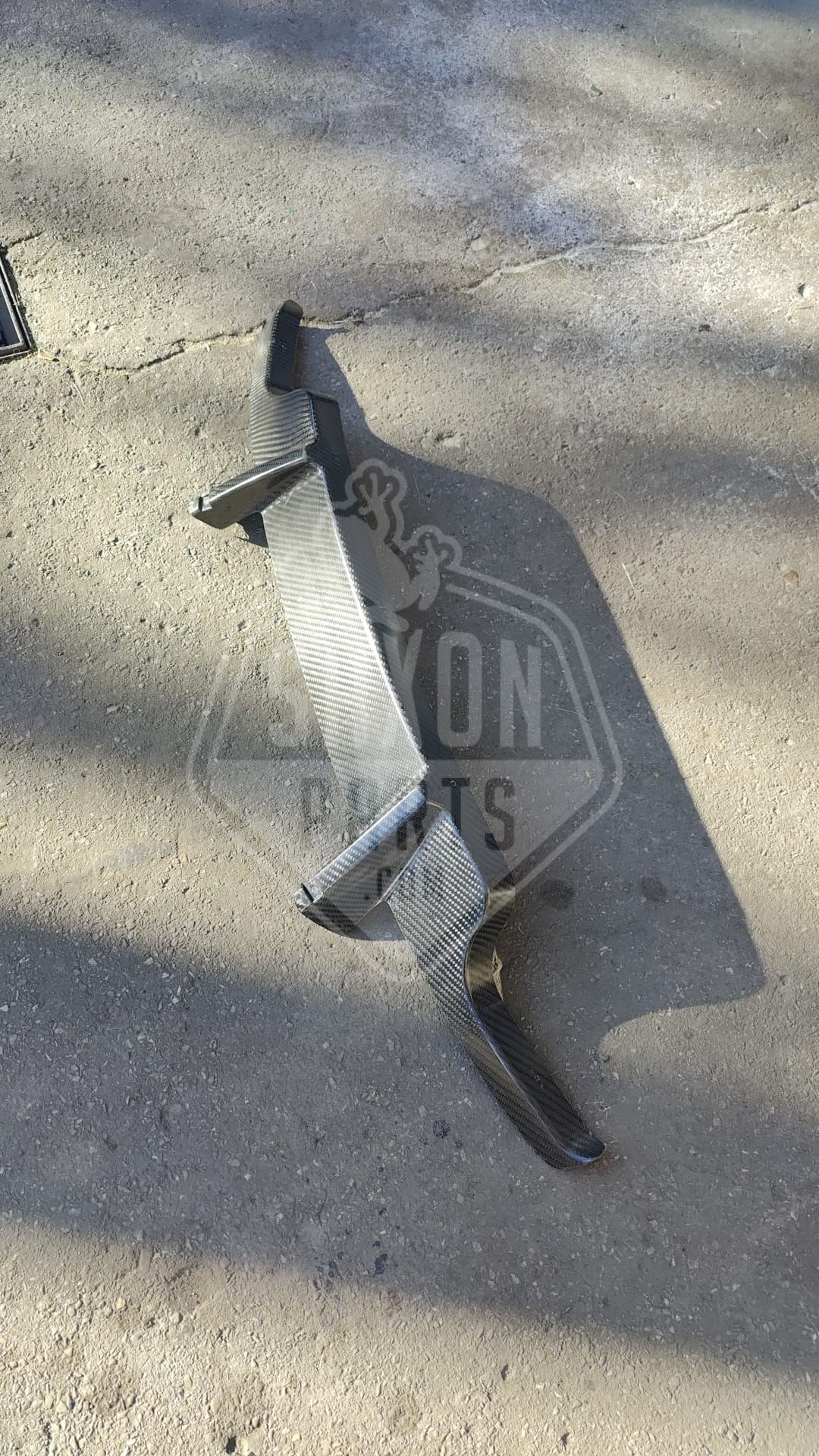

-splitter
-doors

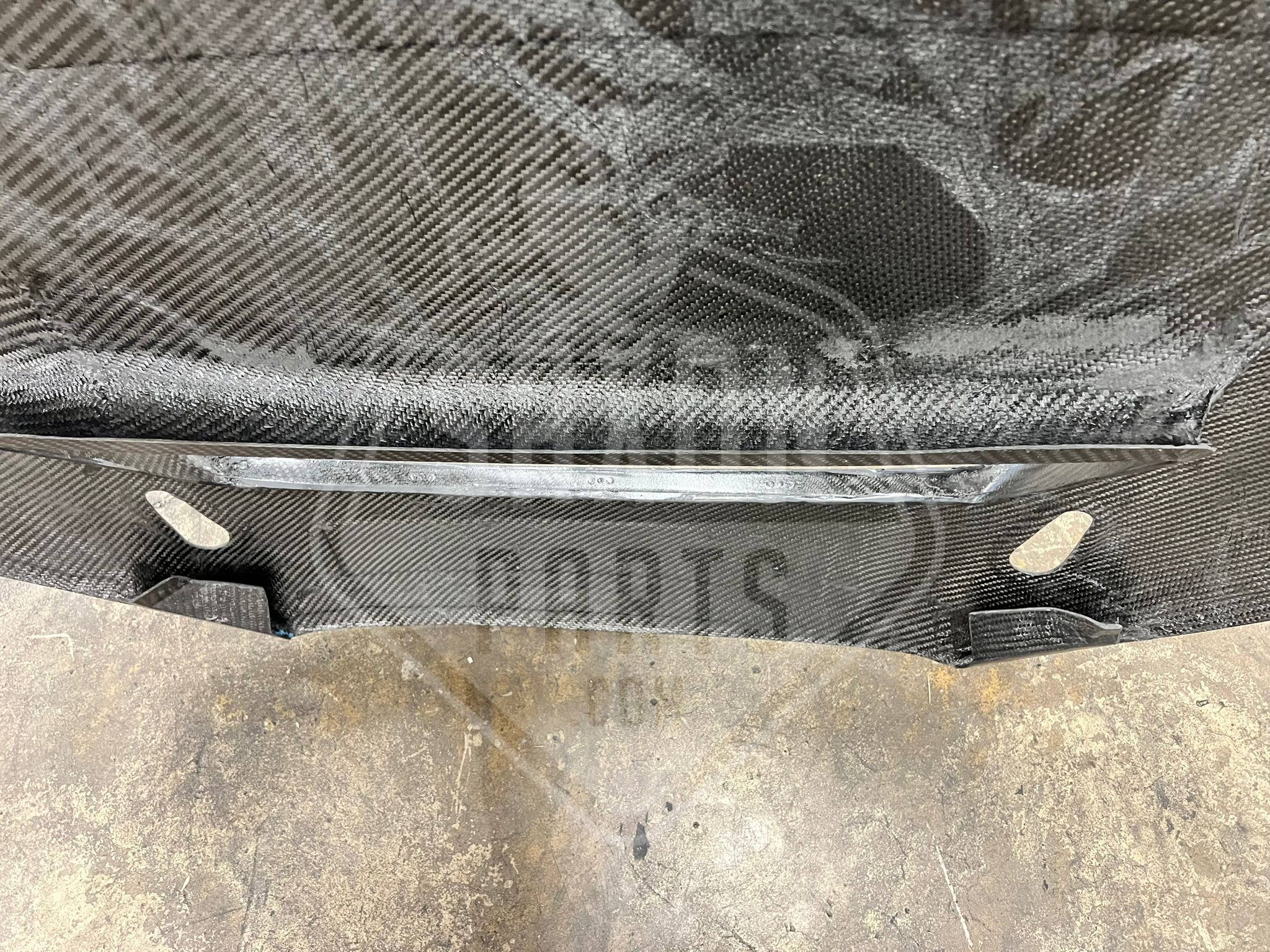

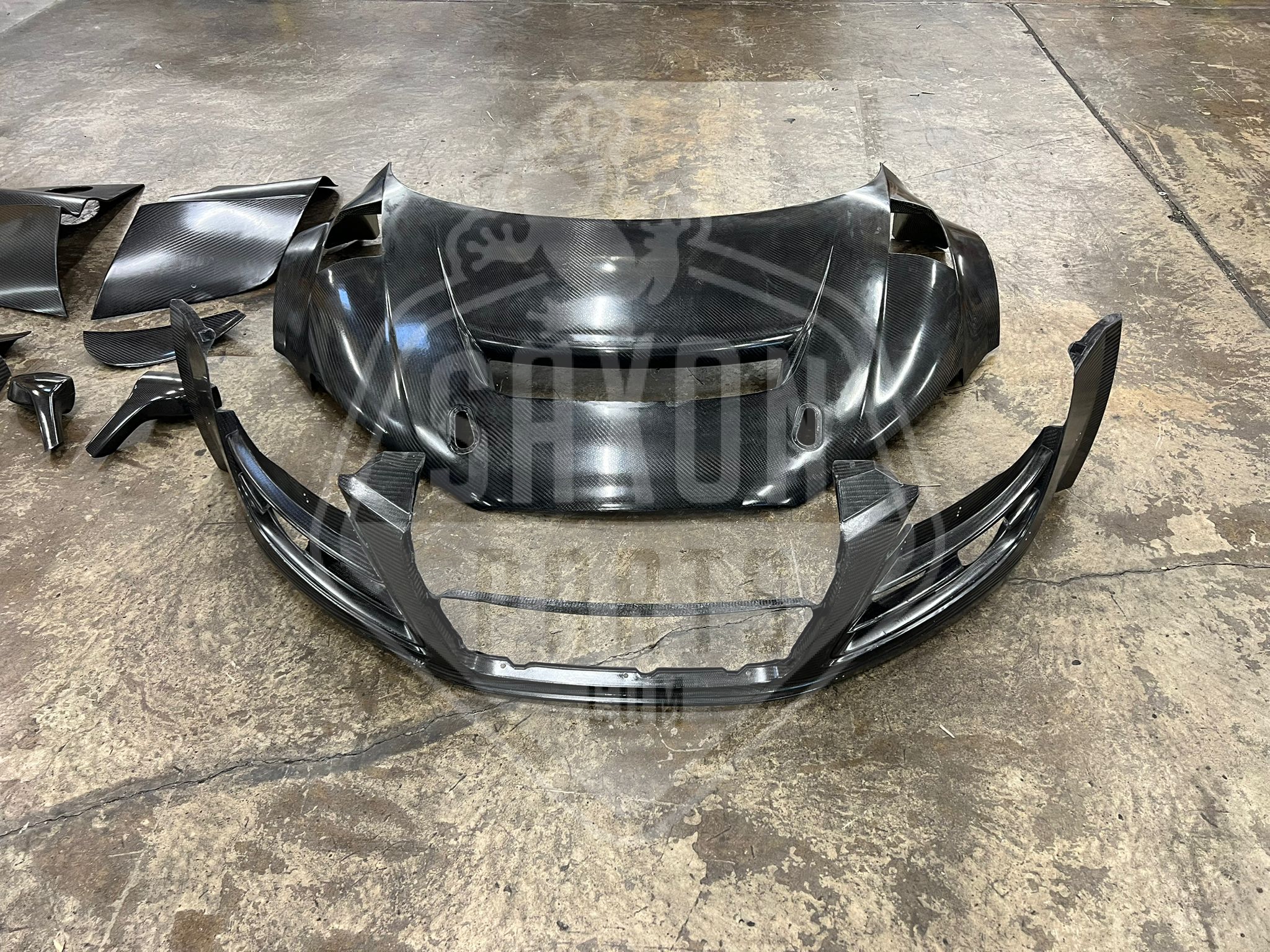

-bonnet

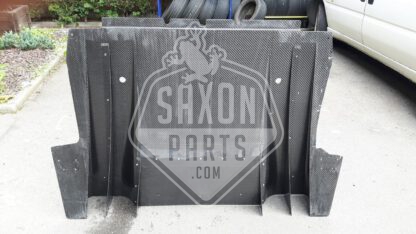

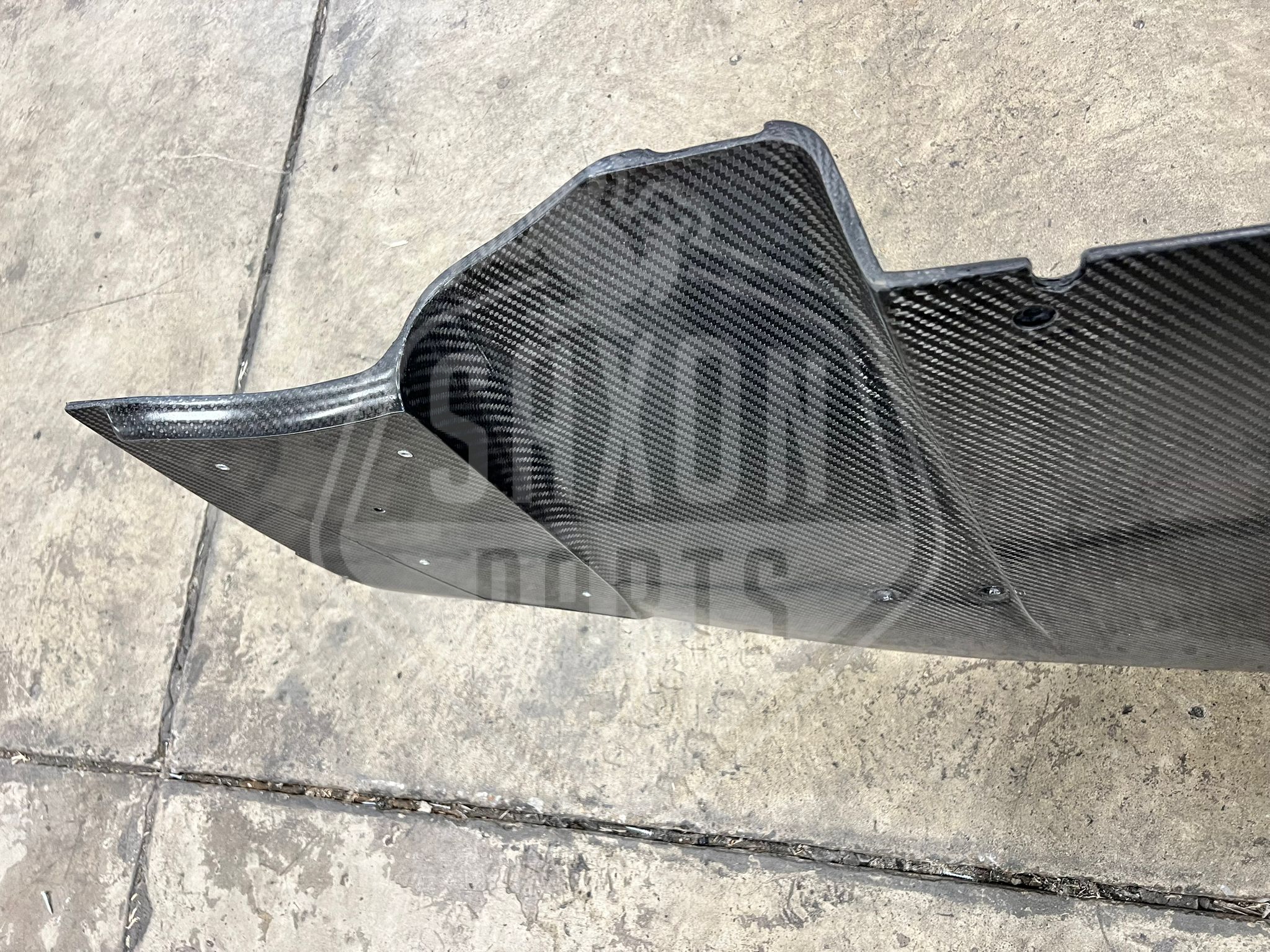

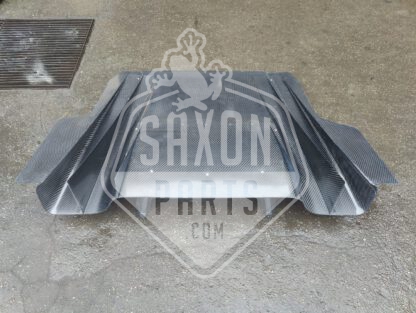

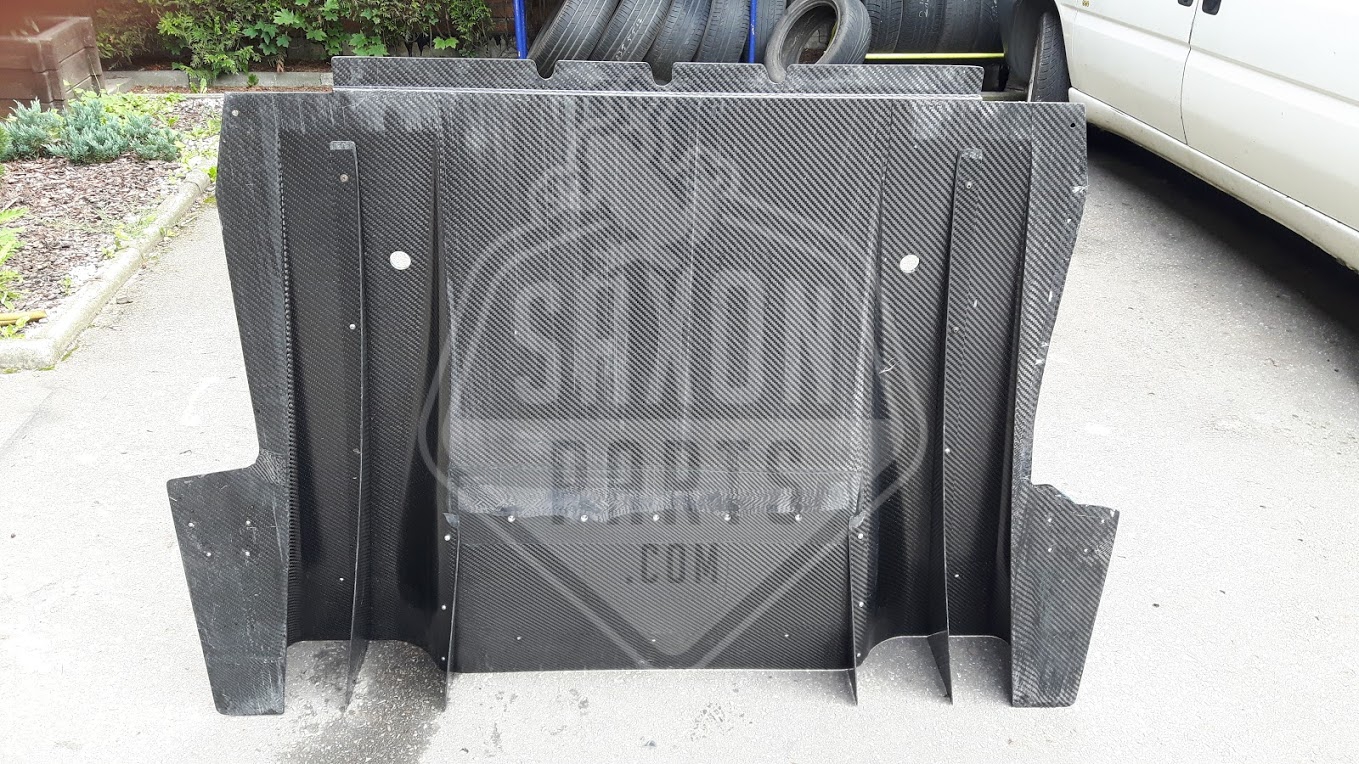

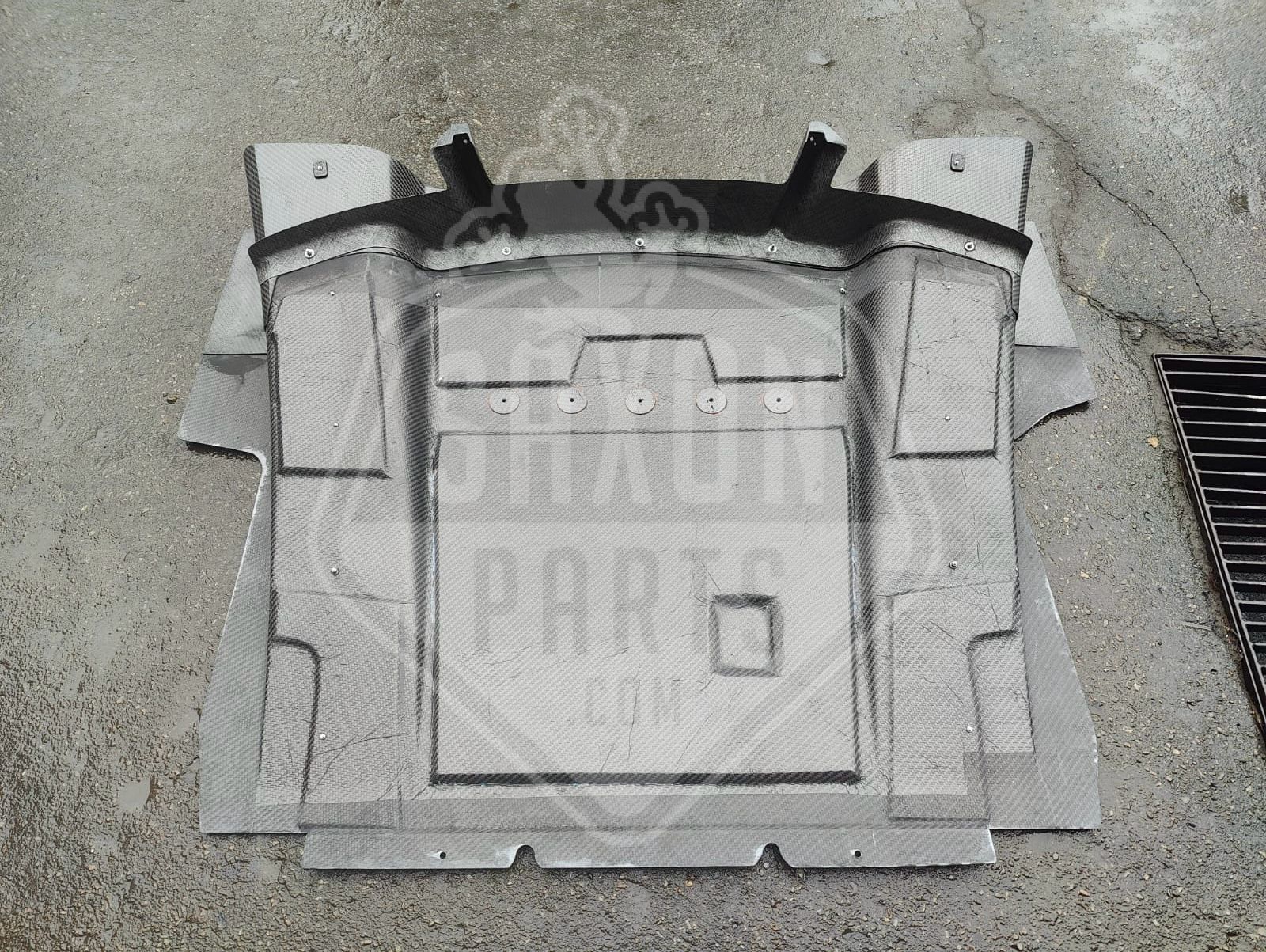

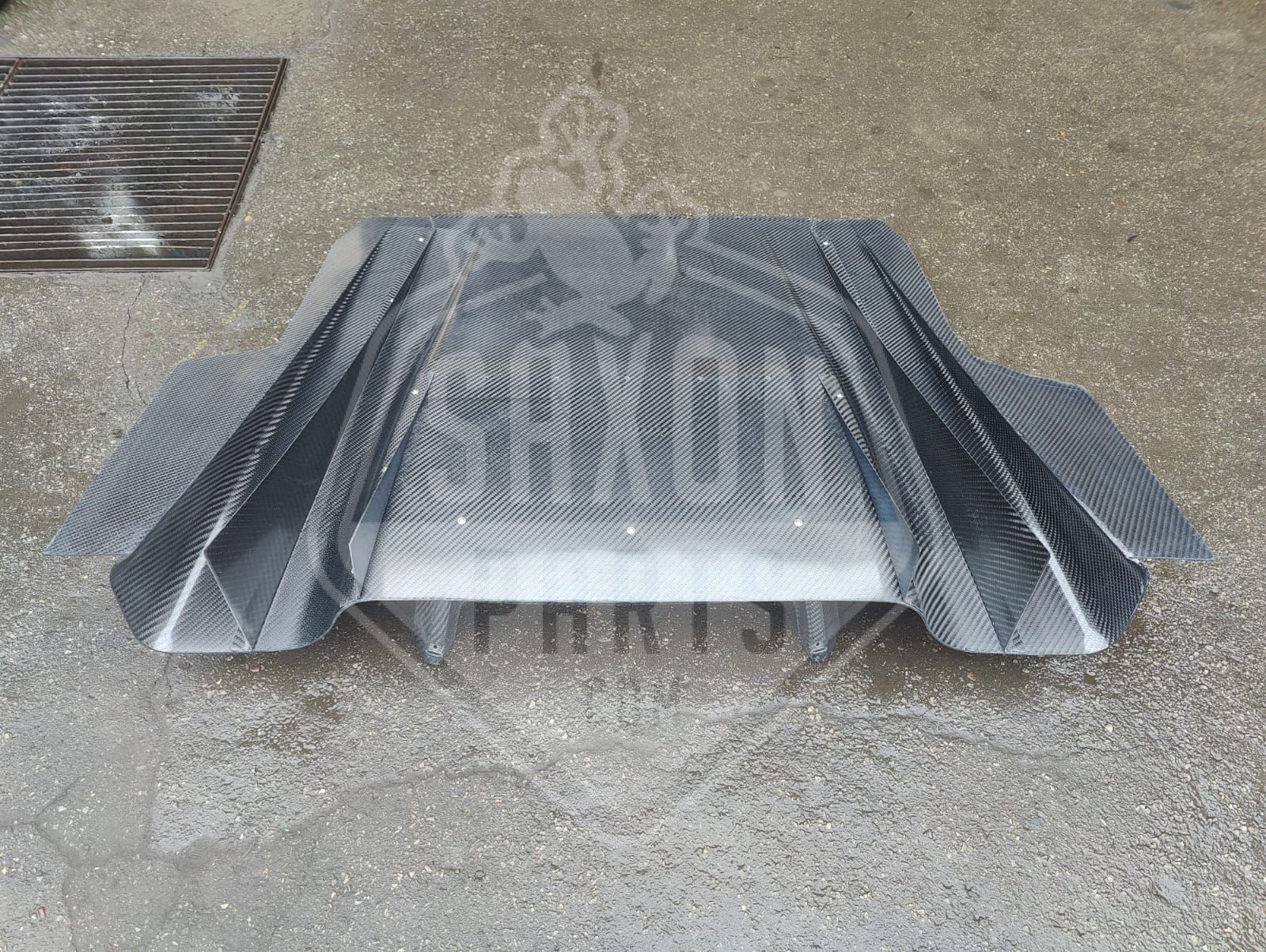

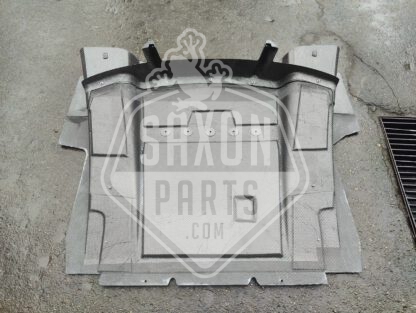

-diffusor

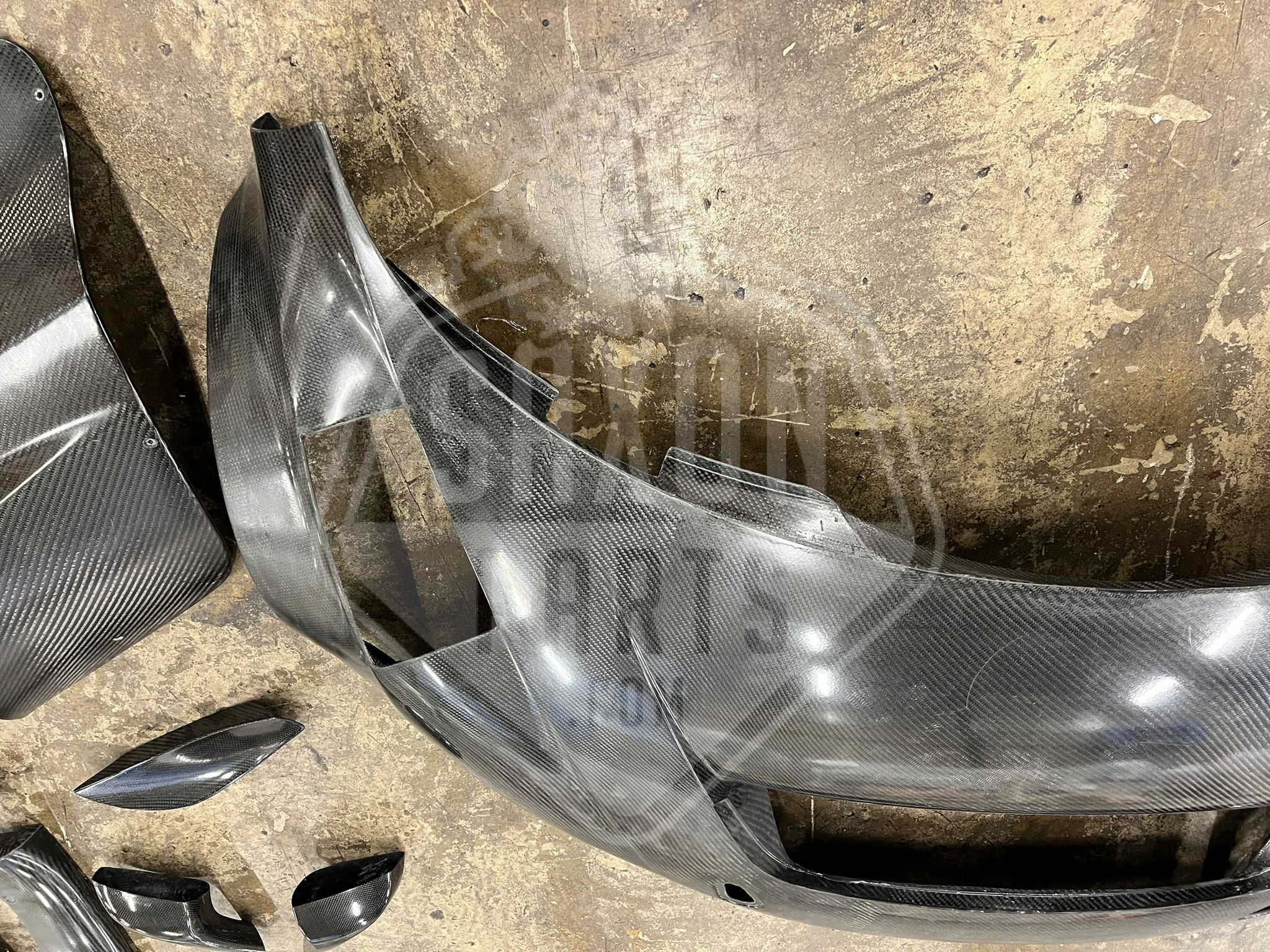

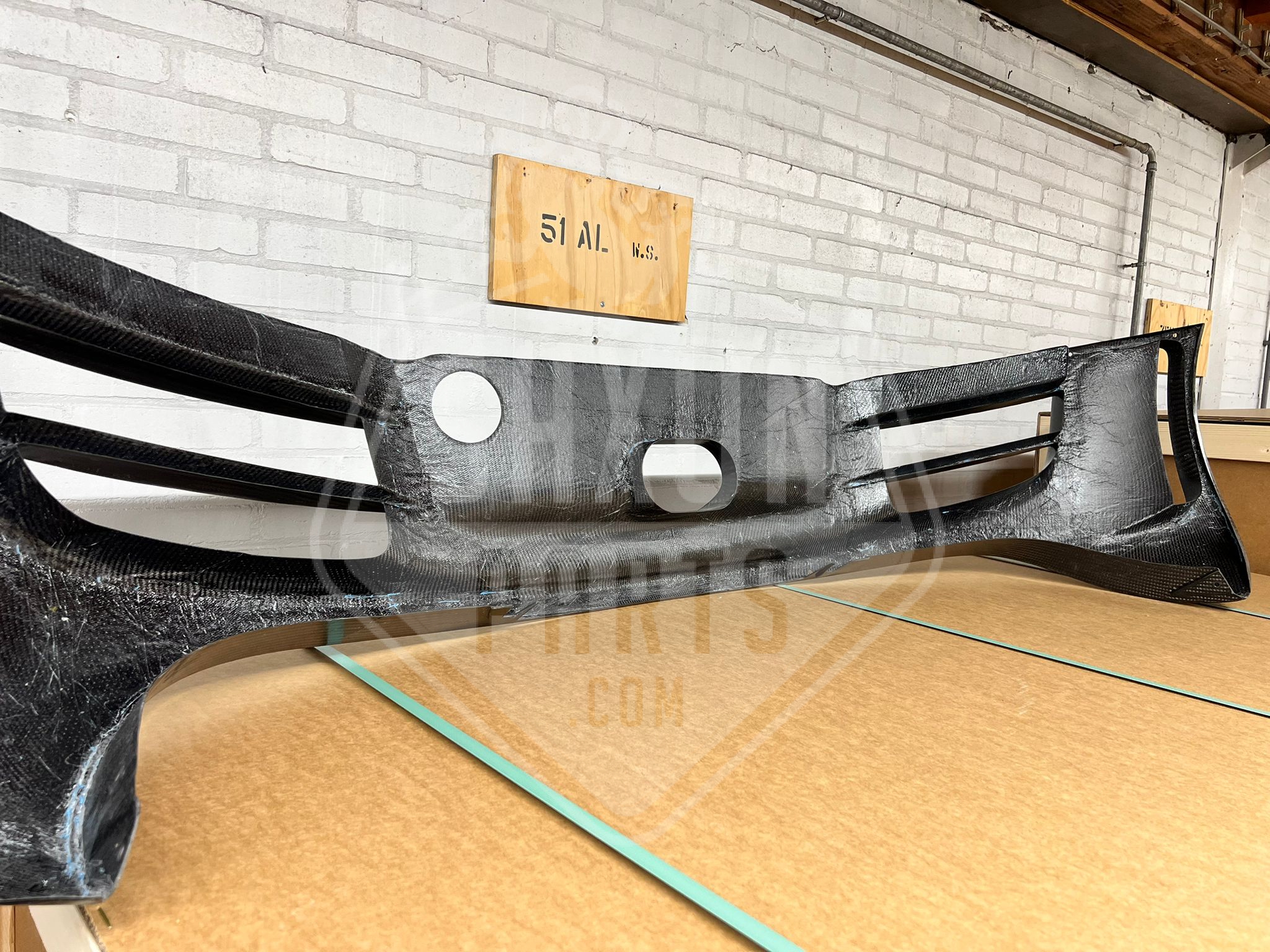

-front and rear bumper

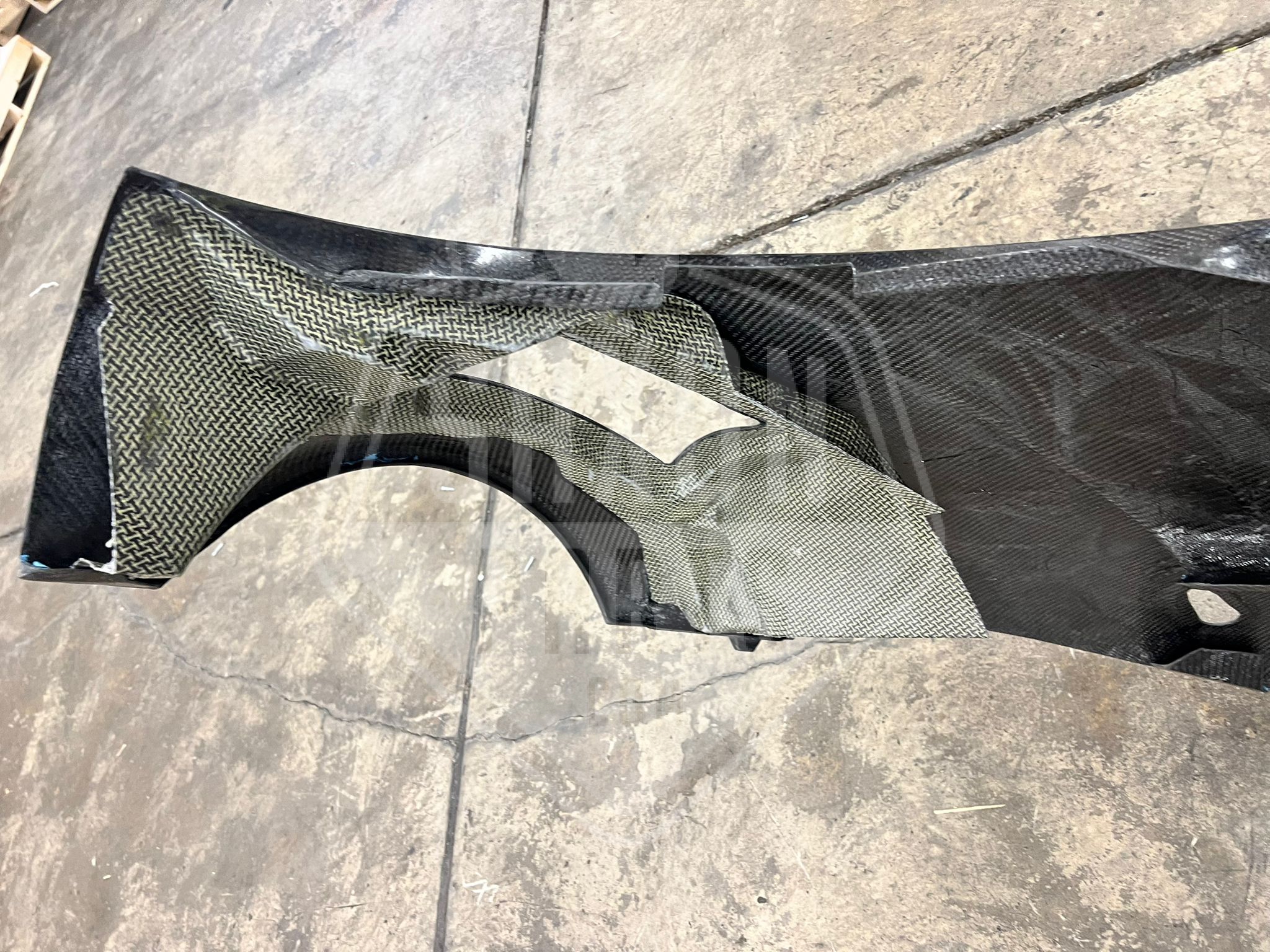

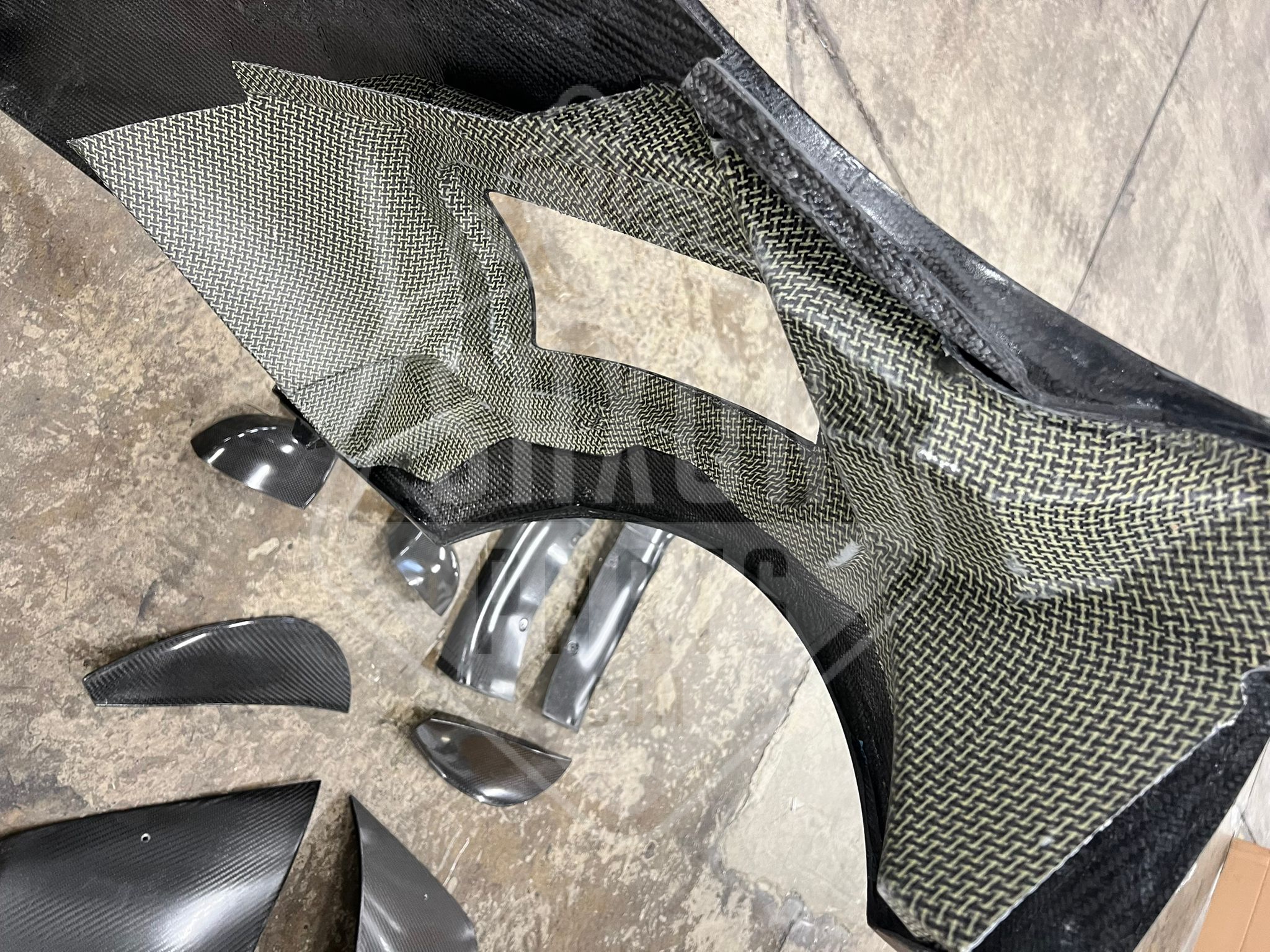

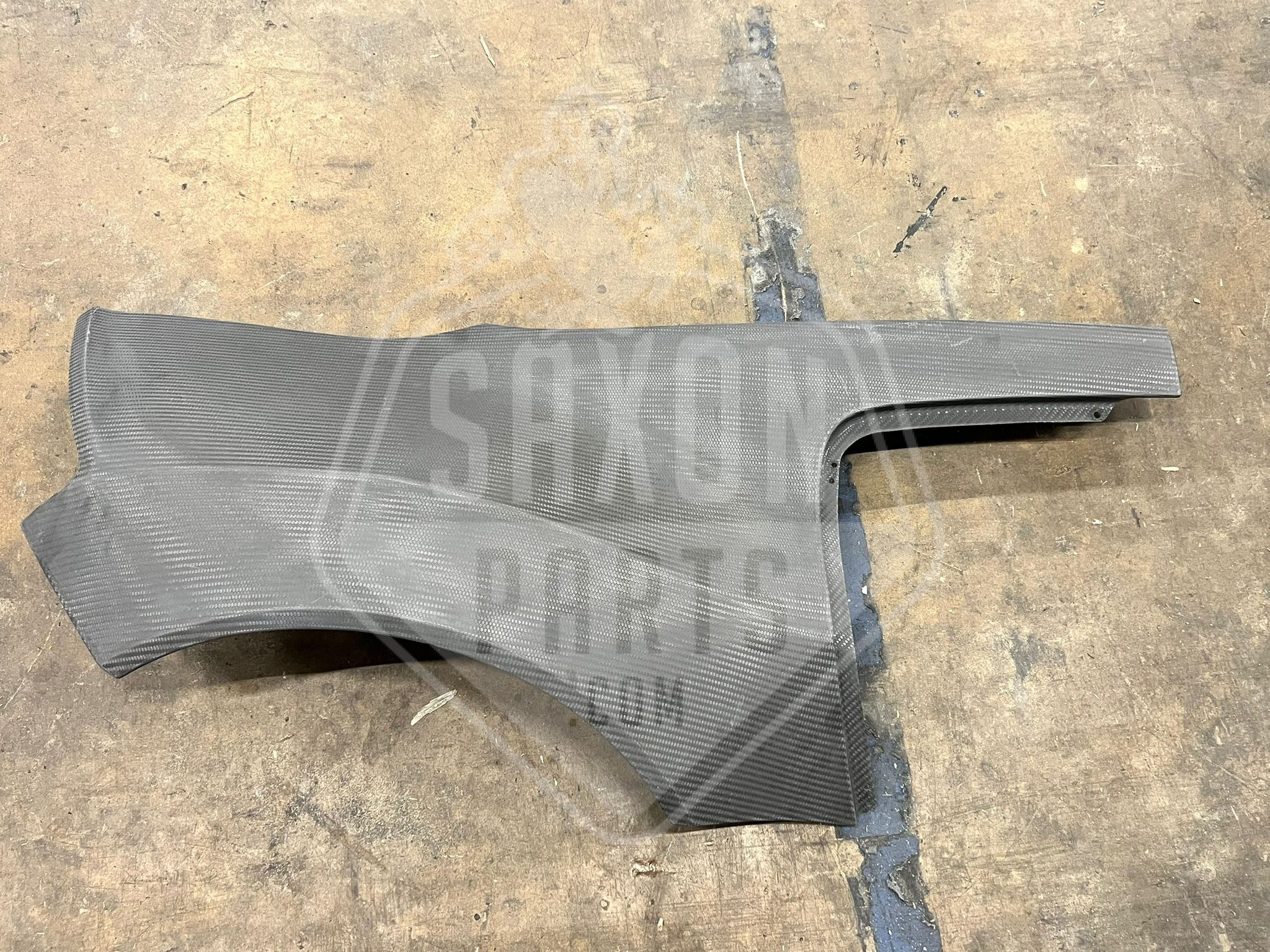

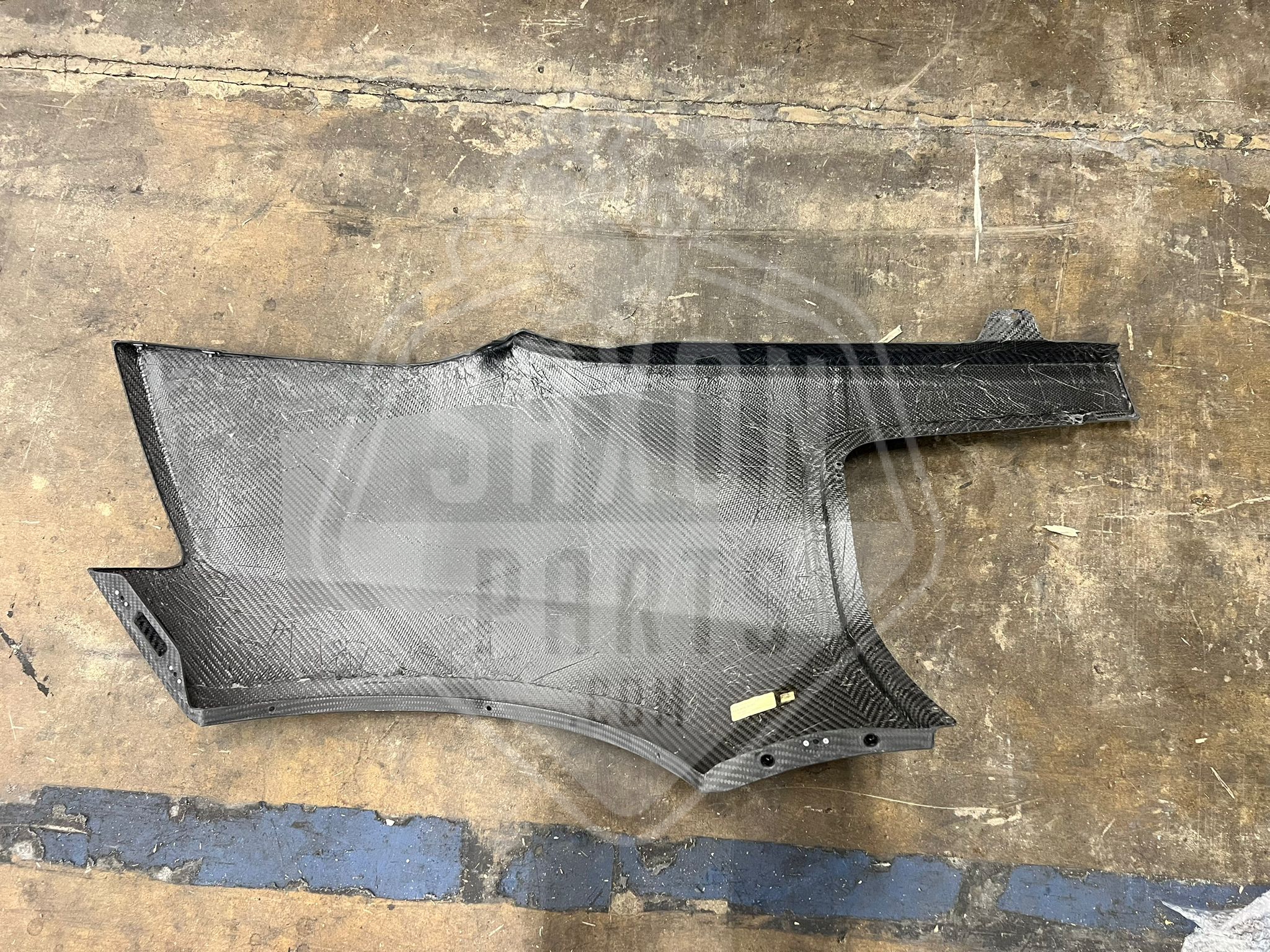

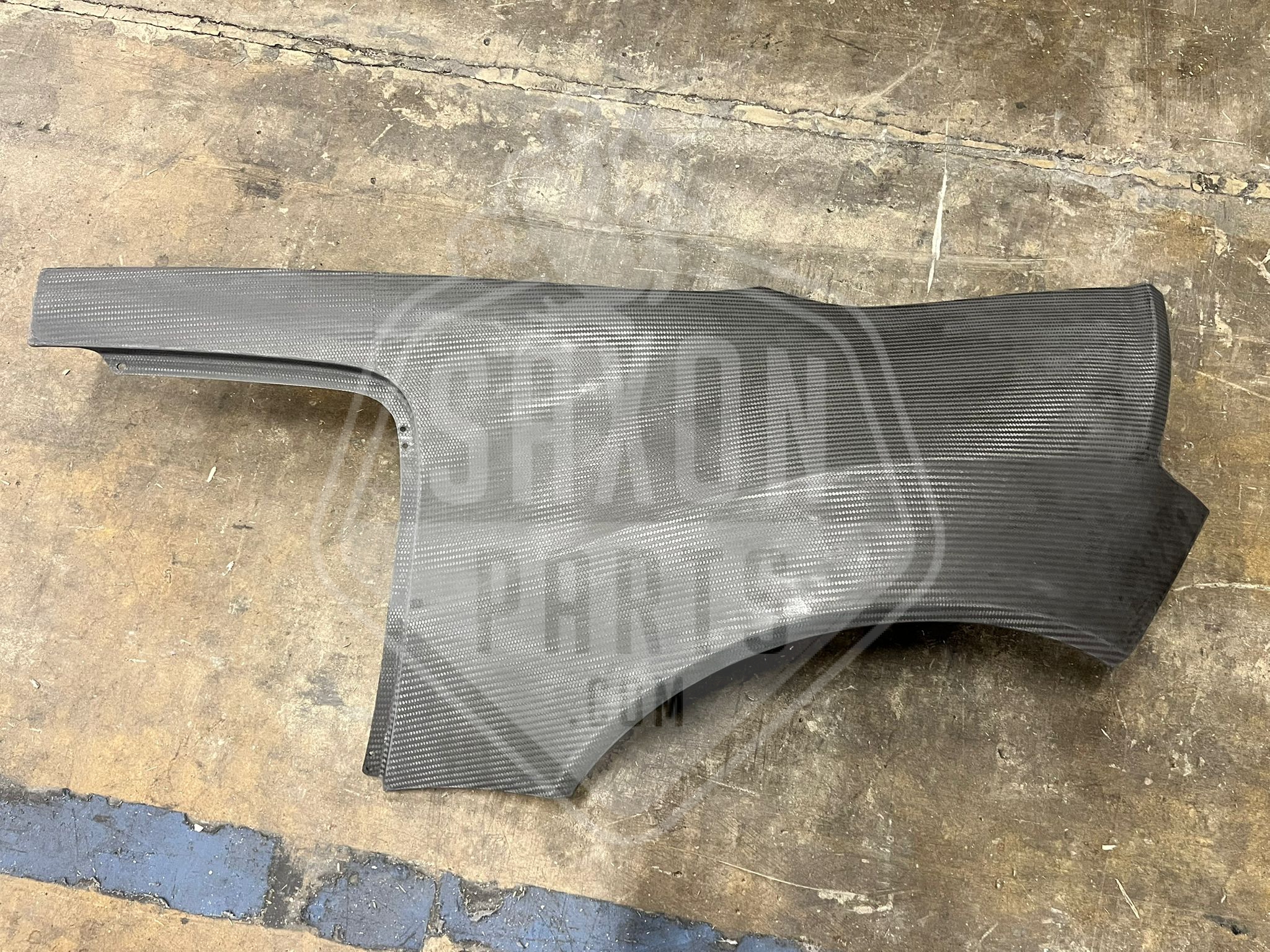

-fenders

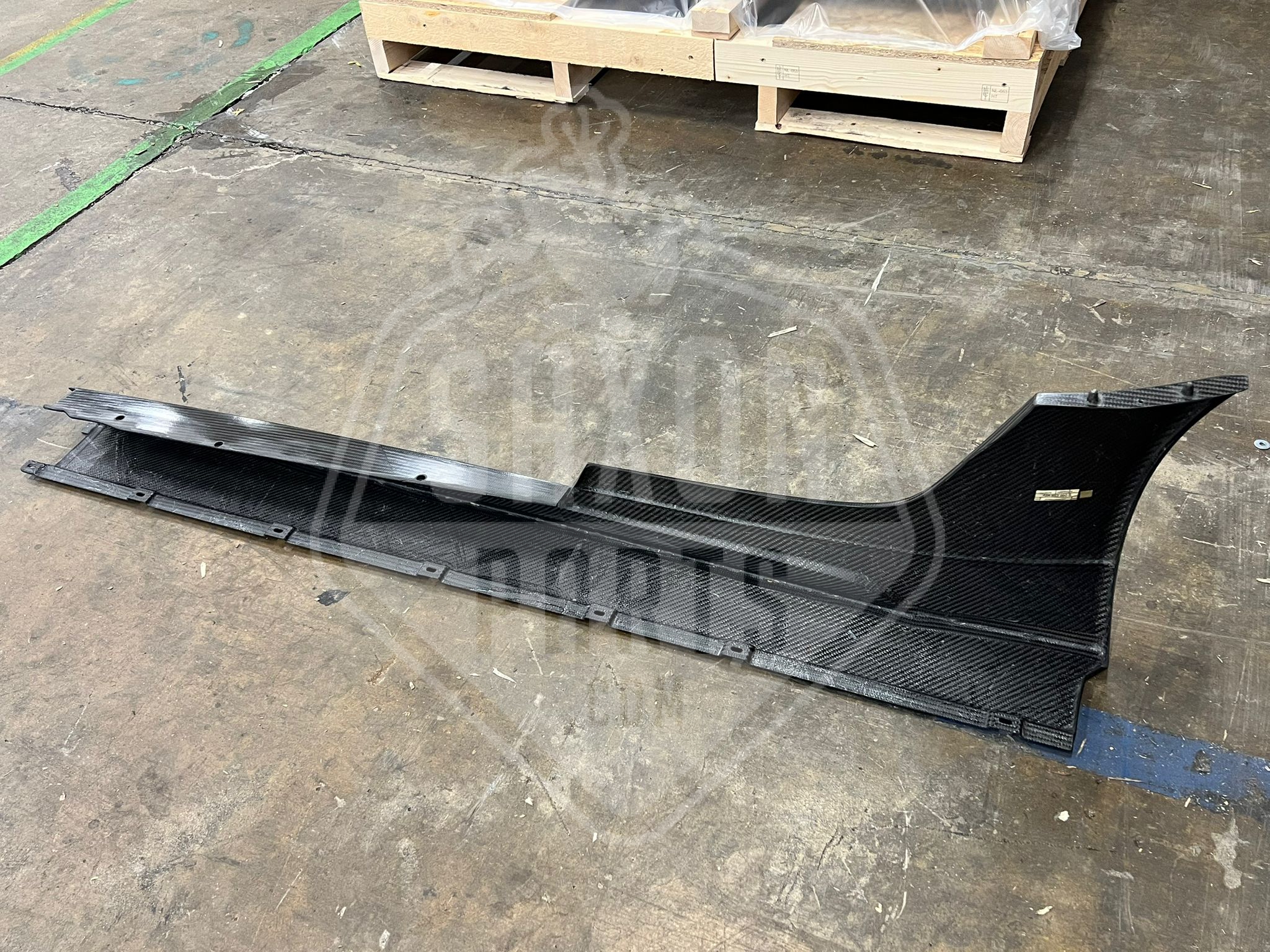

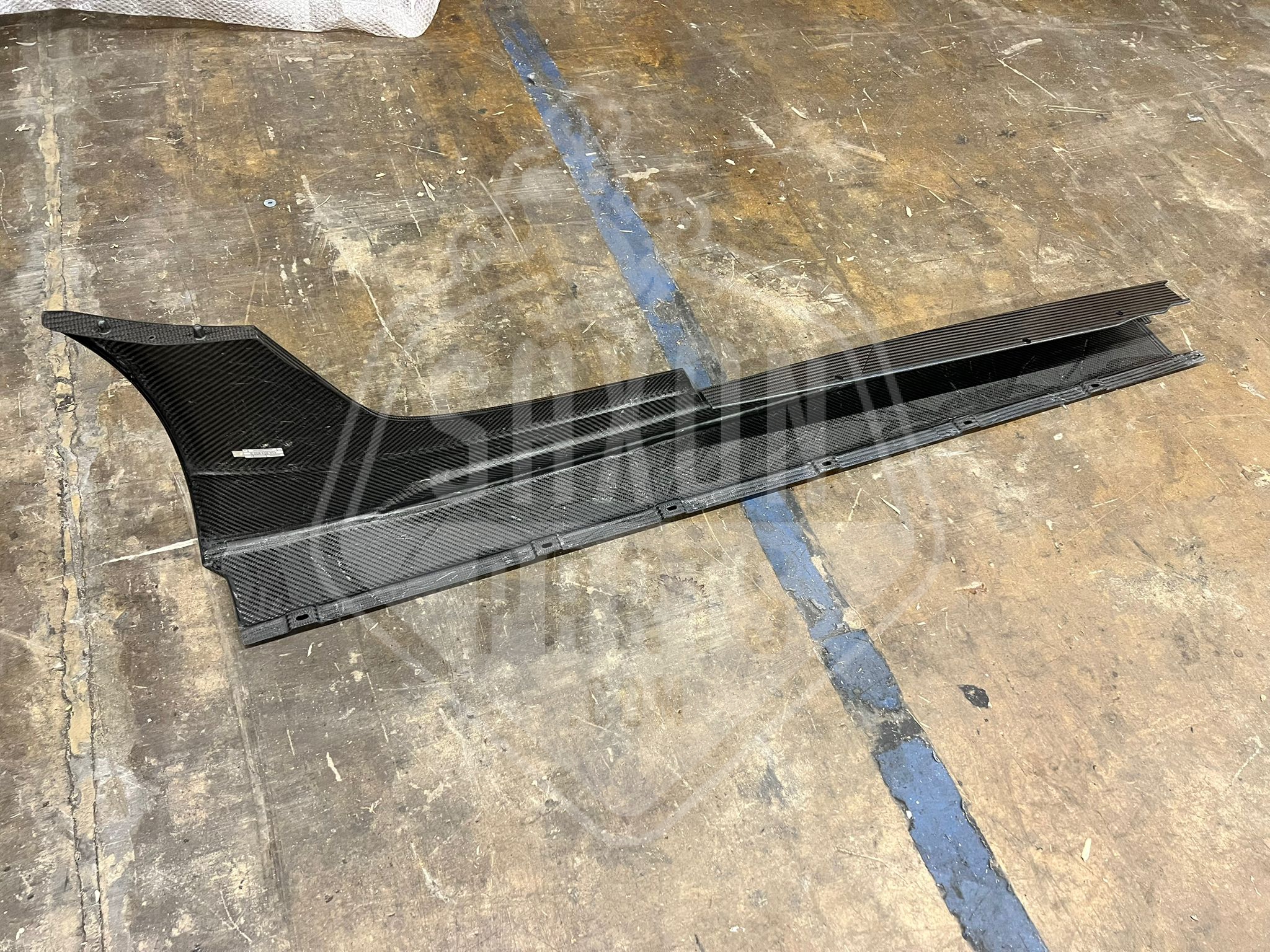

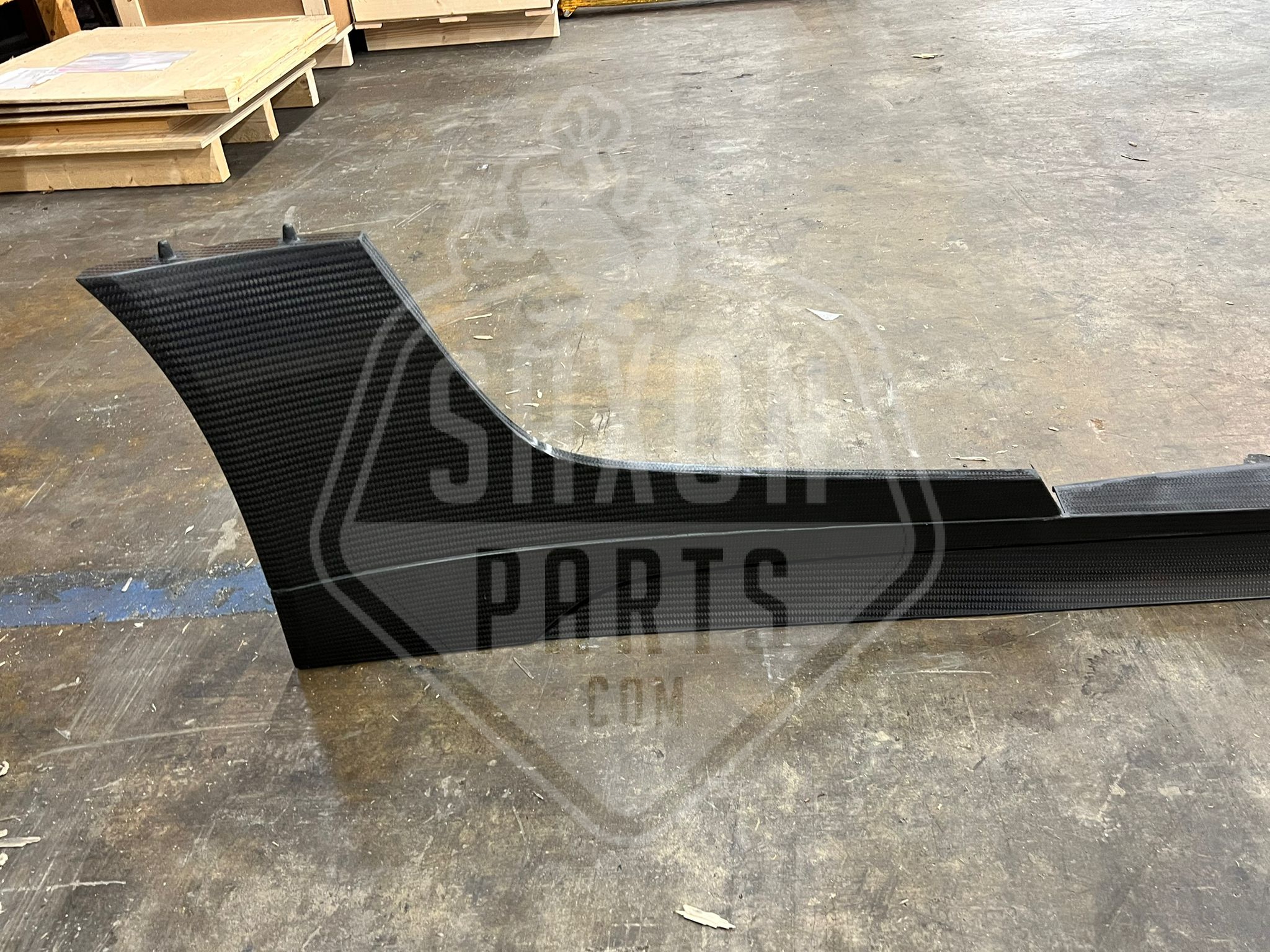

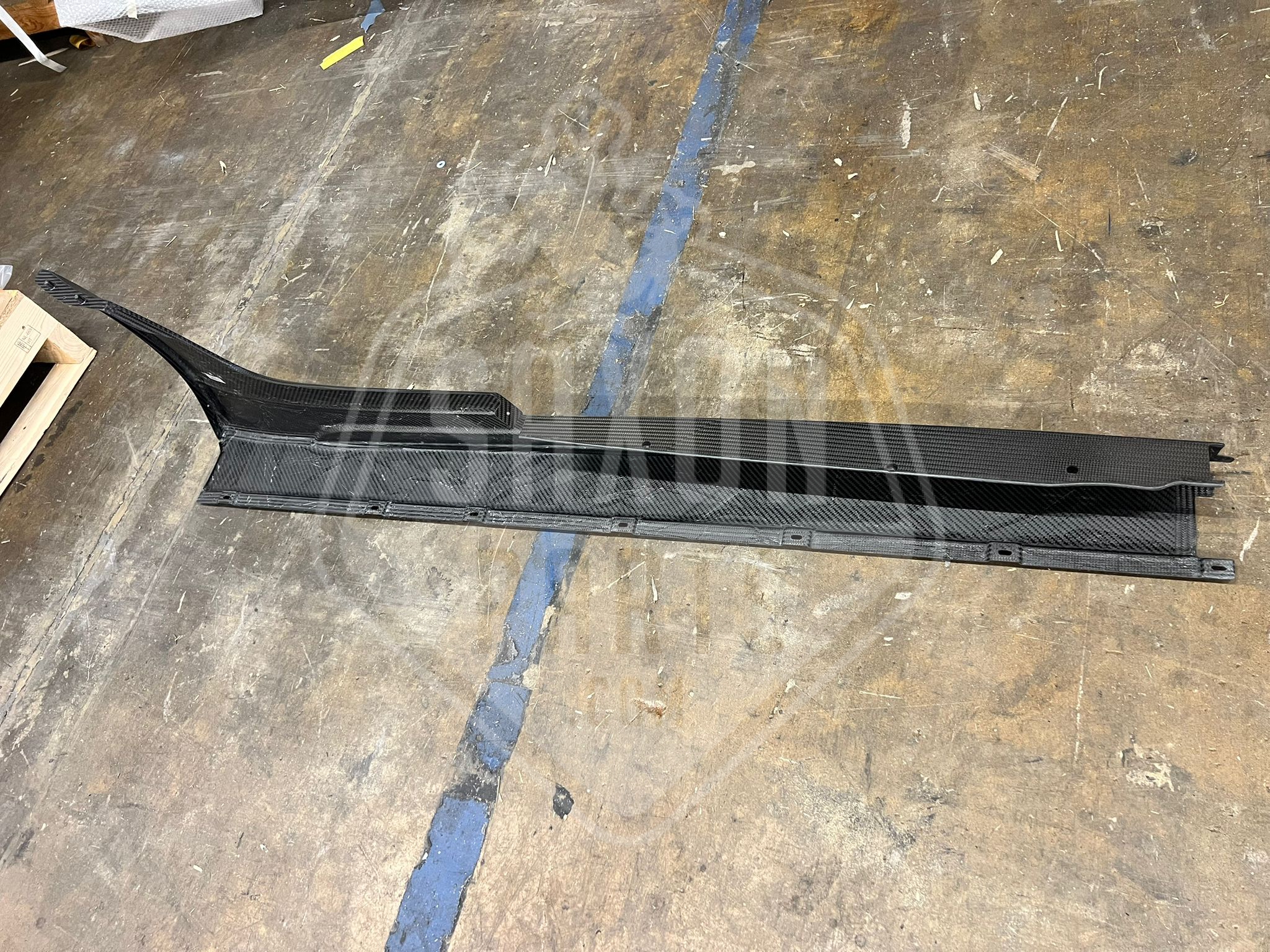

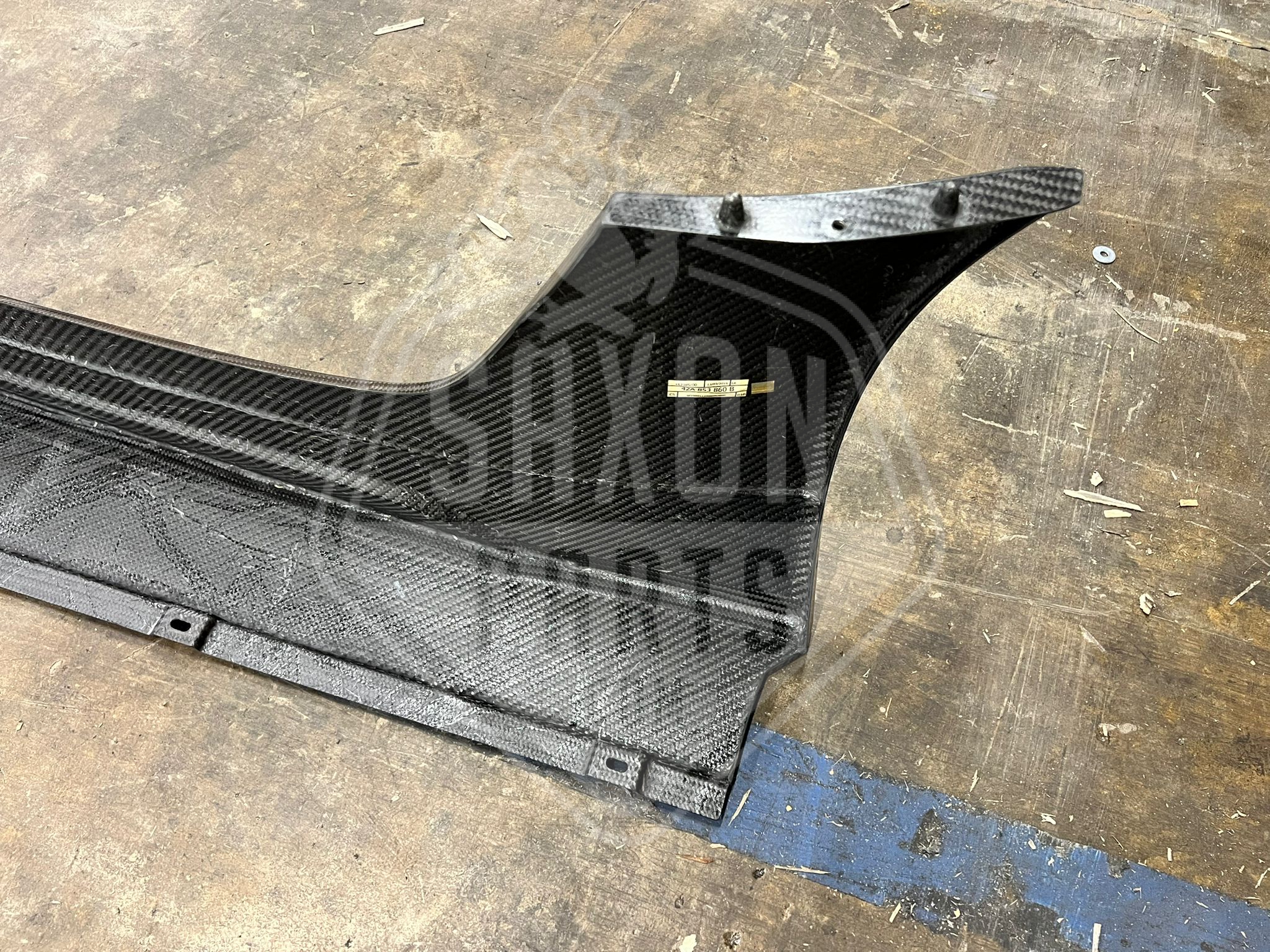

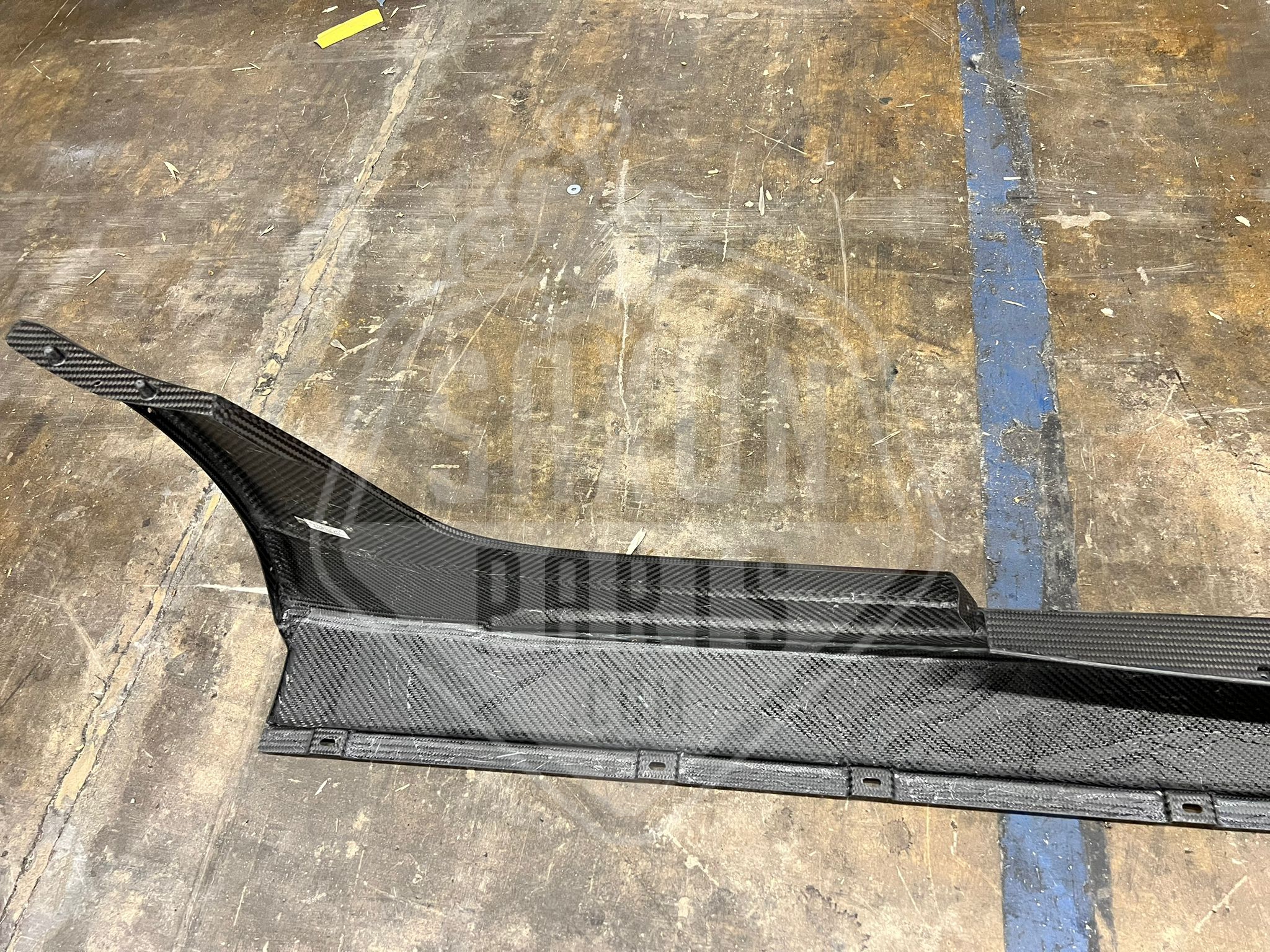

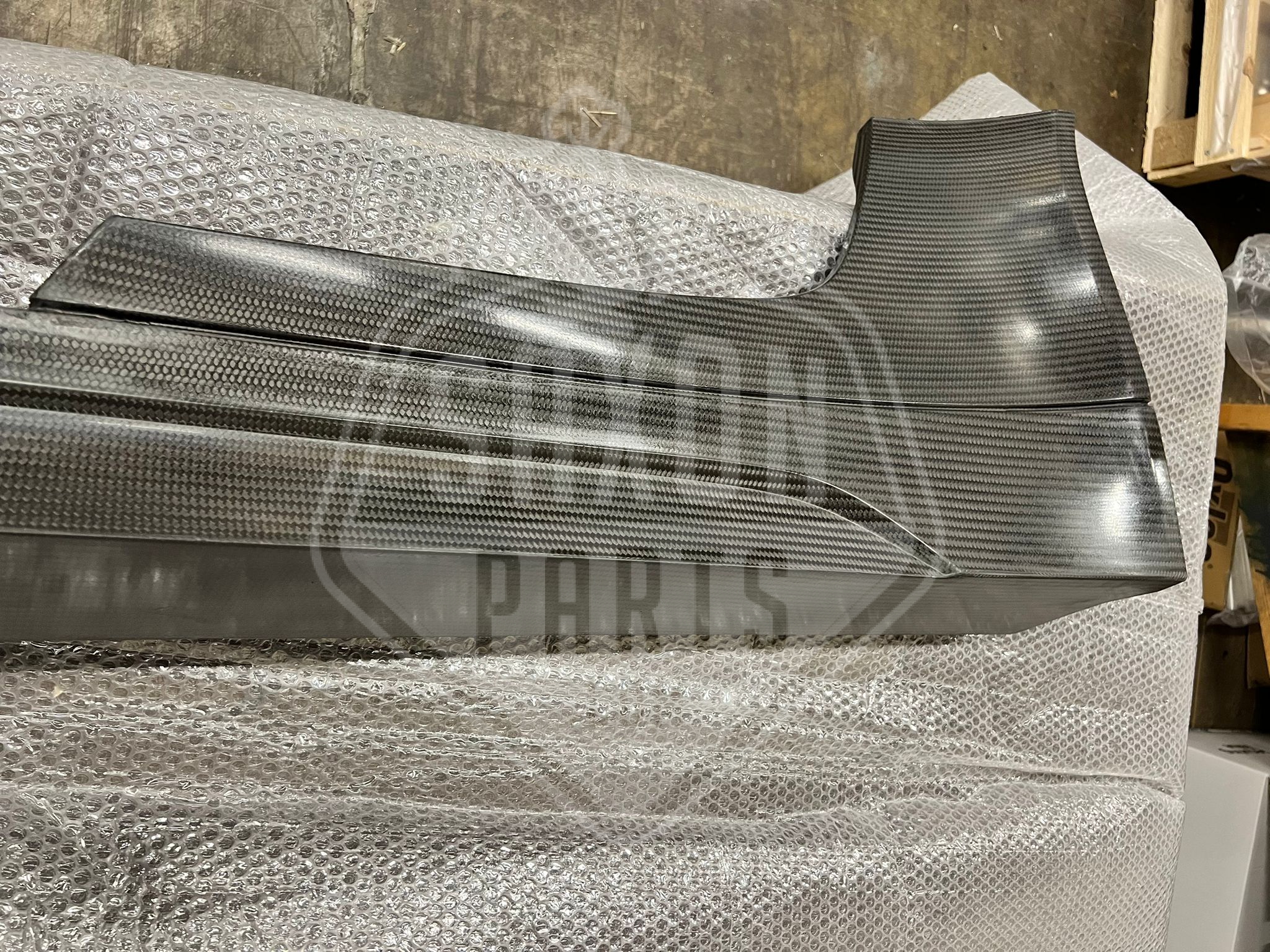

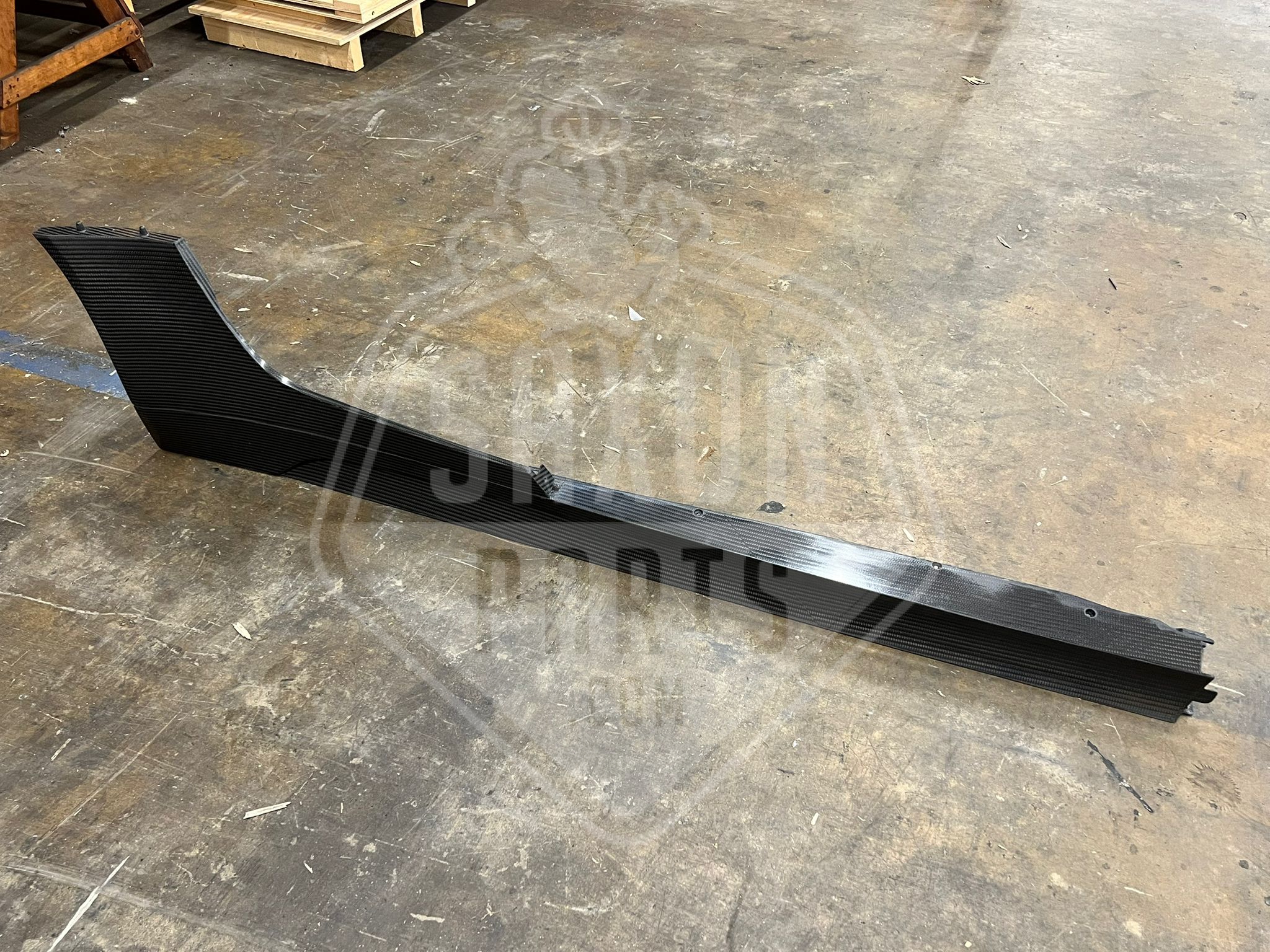

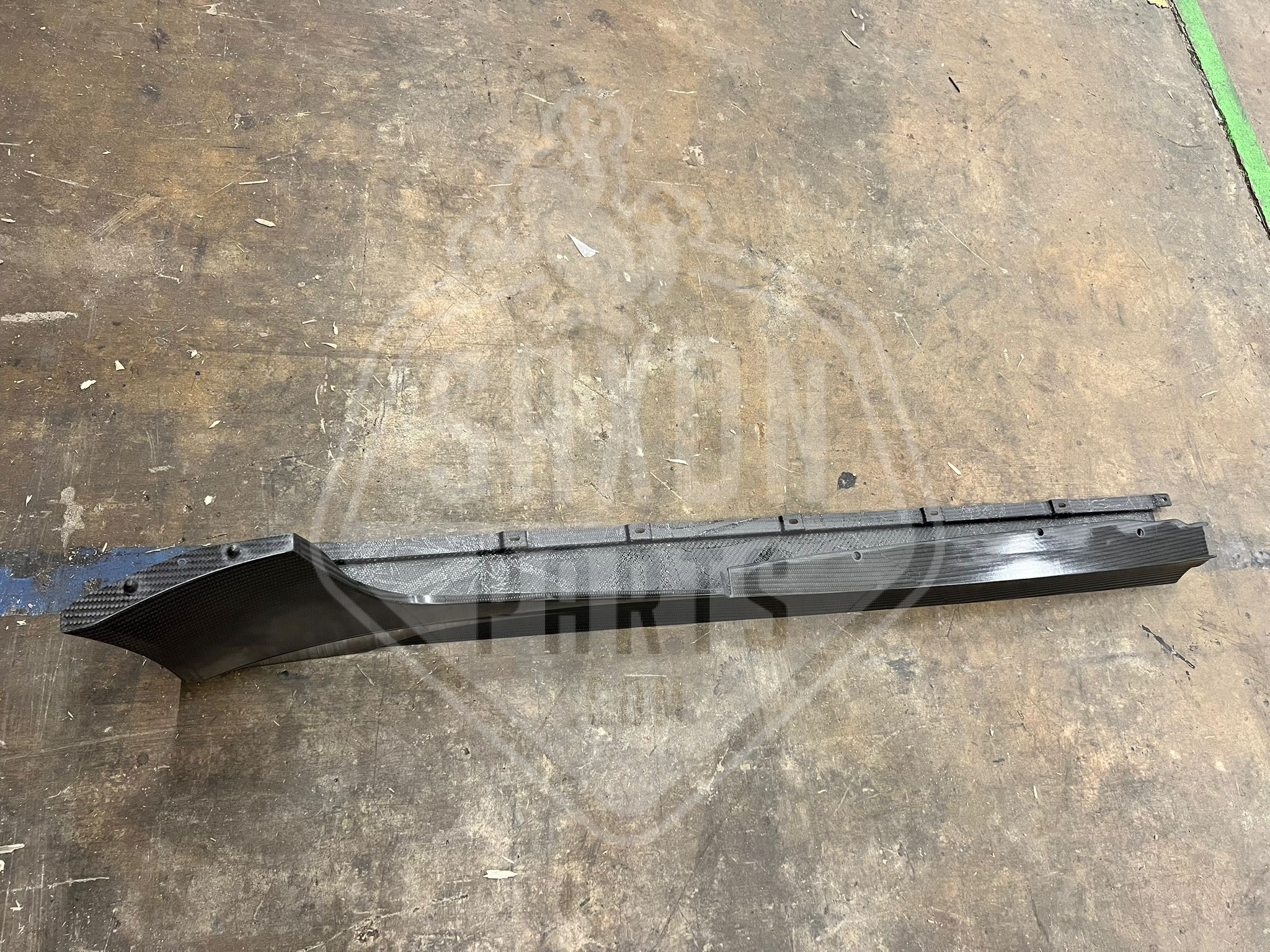

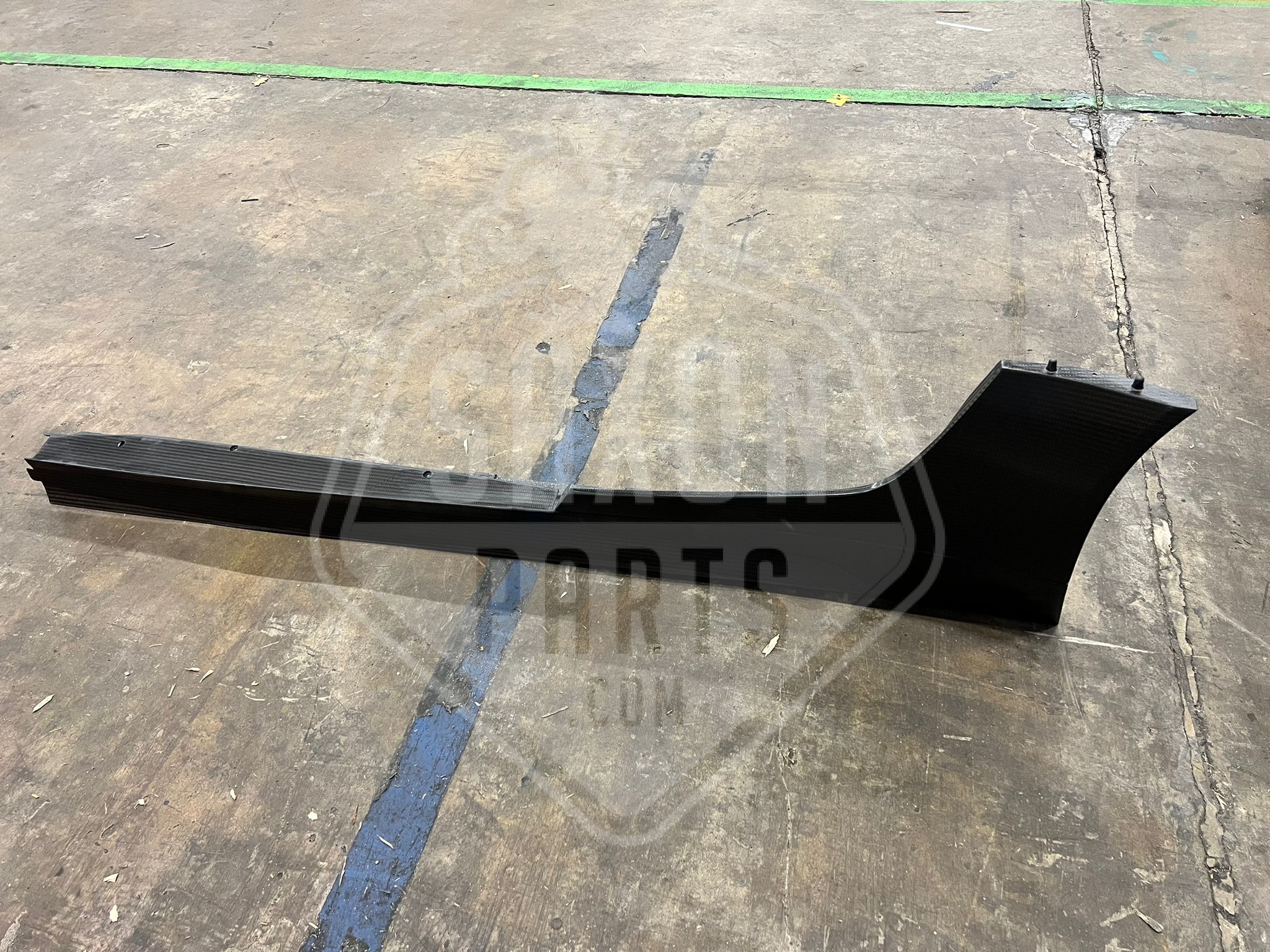

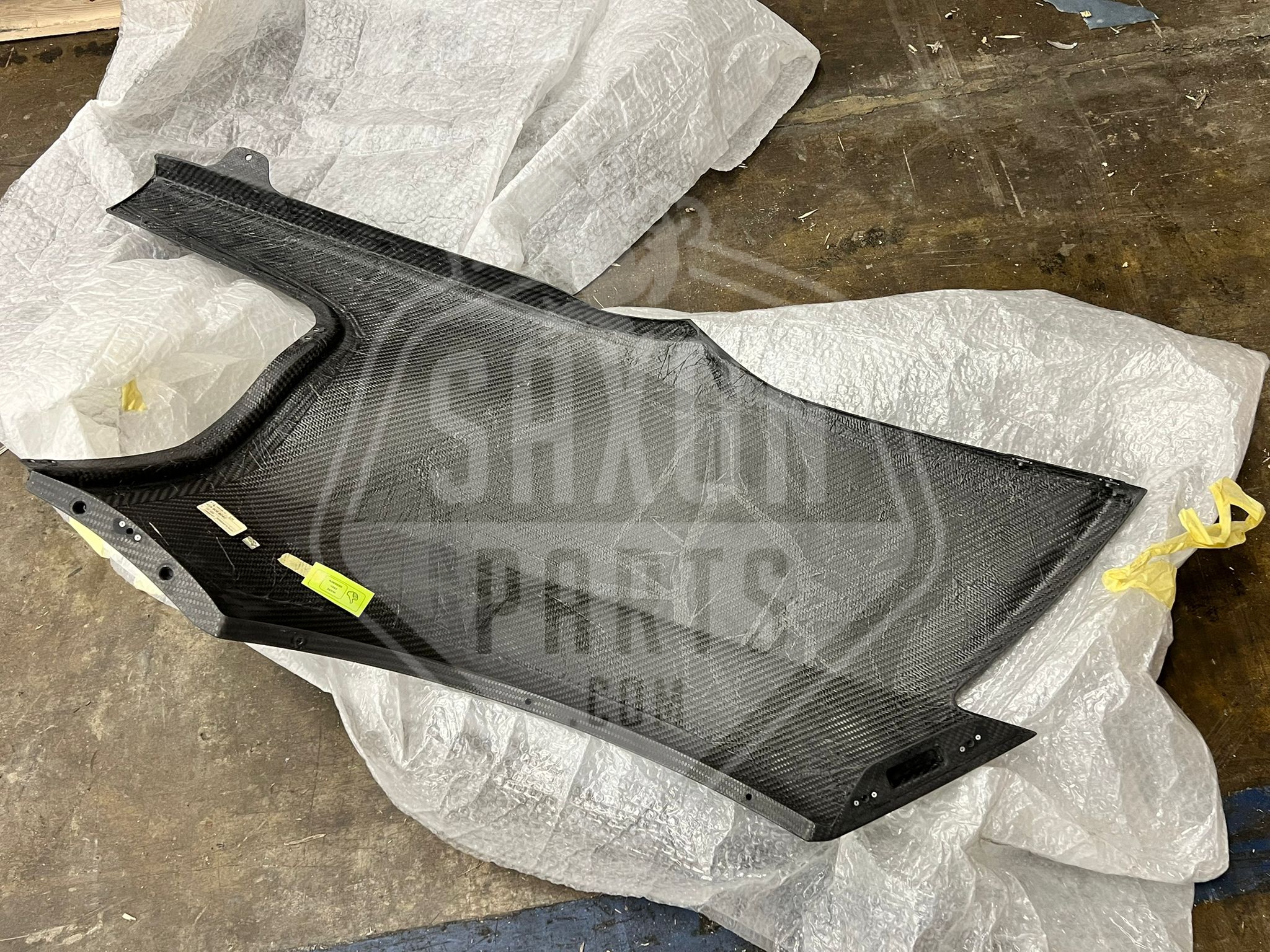

-side panels

As of 2017 we can also offer the Makrolon side windows for the R8 LMS, Ultra, GTD and Cup doors. (2009-2014)

AUDI R8 LMS Ultra

The R8 LMS ultra
It is a version of Audi R8 LMS with CFRP (carbon fiber reinforced plastic) doors with high-energy absorbing new crash foams, new PS1 safety seat developed by Audi, updated transmission provides additional reserves on long-distance runs, increased engine power to 570 PS (419 kW; 562 bhp) (depending on restrictor regulations) with higher torque at lower engine speeds, a larger engine oil cooler and transmission fluid cooler, relocated steering hydraulics oil cooler to the vehicle’s midsection, enlarged air vents, improved air flow to radiator and interior, front 18-inch wheels with Michelin 30-65/18 tires, optimized brake cooling at the front wheels, uniball joints transverse control arm mounts, weight-reduced compression and rebound-adjustable gas dampers from Bilstein, wider front hood with louvers, new wider rear wing with larger end plates, new front plate with optimized diffusion under the front end. Previous vehicles could be upgraded via an update kit.

The vehicle was sold for €329,900.00 plus VAT, with delivery began in March 2012

Engine
90° V10
DOHC
4 valves per cylinder
Race power approx: 365-412kW*
Max torque approx: 500 Nm
Displacement: 5200 ccm
Power/Weight ratio: 2,5 kg / Hp
Fuel Tank Capacity: 120L

Transmission
Rear wheel drive
Sequential 6-speed gearbox with shift paddles
* variable adjustable with restrictors
Suspension
Independent double wishbone suspension damper strut with coil spring (Eibach) adjustable dampers (Bilstein)

Tyres
Front: 27/65 18′
Back: 31/71 18′
Bodywork
Material of Chassis: Aluminium
Length: 4475 mm
Width: 1994 mm
Height: 1195 mm
Wheelbase: 2652 mm
Track Width: Front 1670 Back 1650 mm
Weight: 1250 kg

Teams
Belgian Audi Club Team WRT
ISR
Sainteloc
Sebastien Loeb Racing
Team Parker Racing
Team WRT
Mamerow Racing
Raeder Motorsport
Hitotsuyama Racing
Flying Lizard Motorsport
